CARBON WINCH

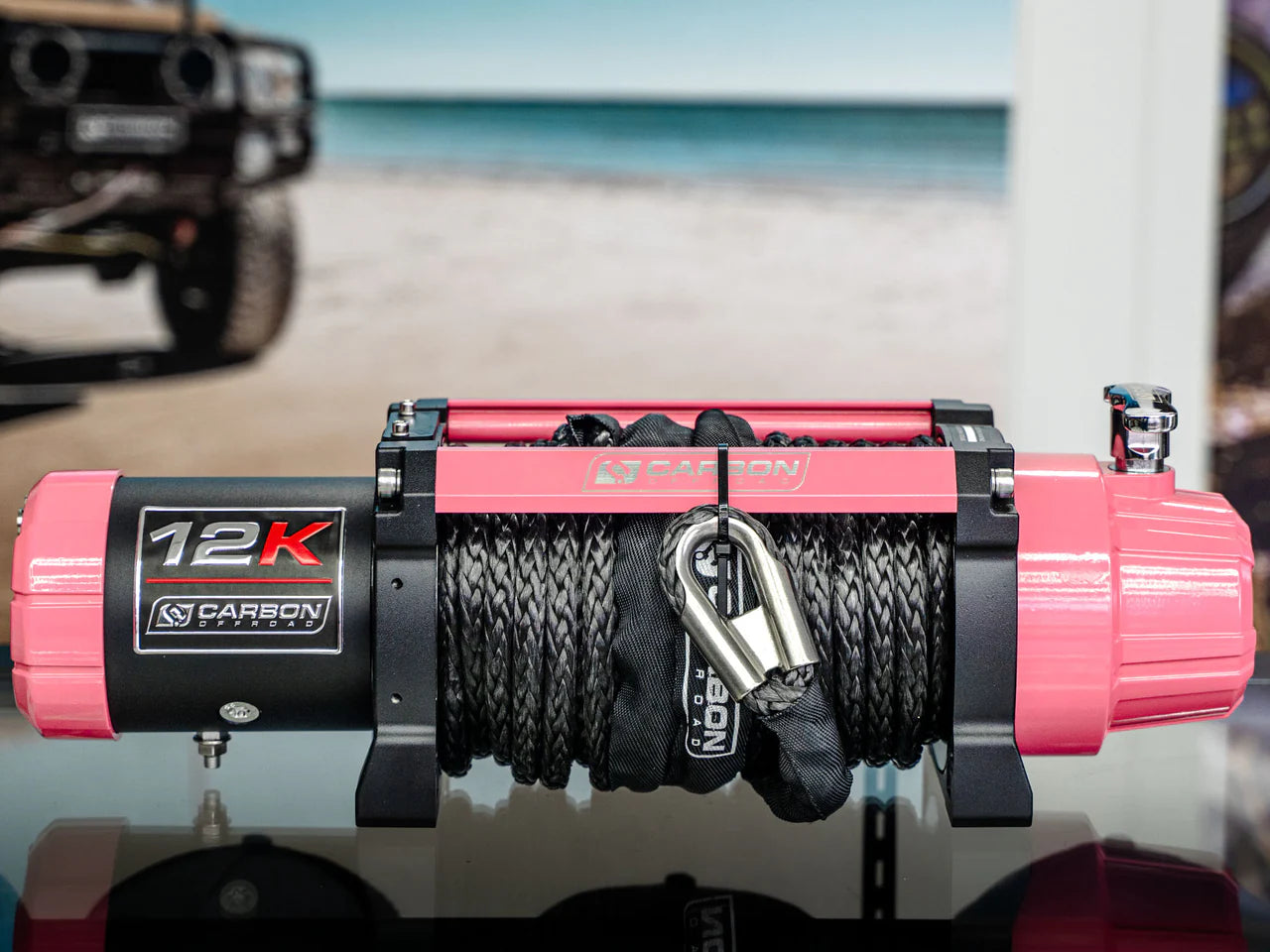

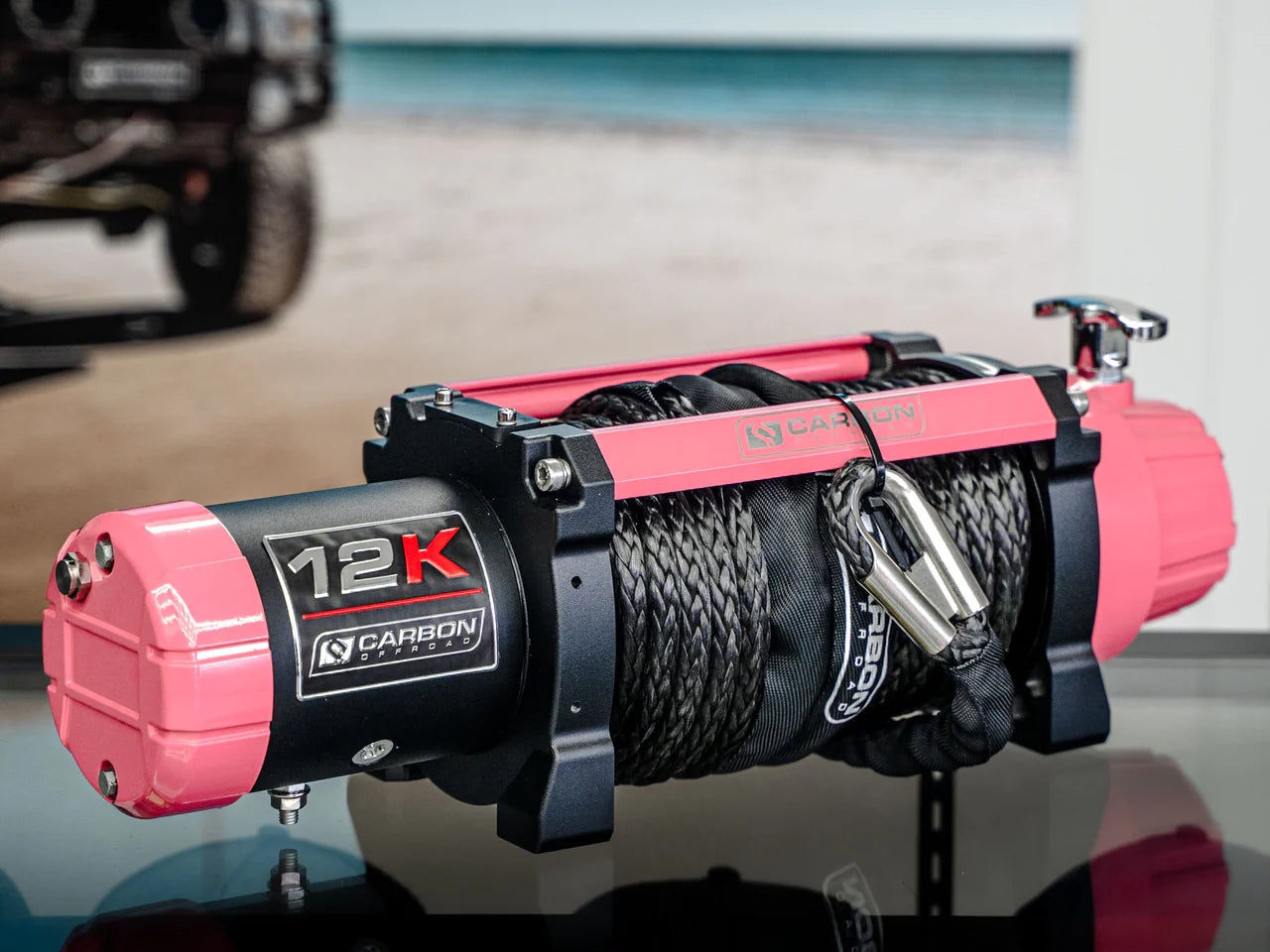

CARBON OFFROAD The Pink Carbon 12K - 12000lb Pink Winch With Pink Hook V3

CARBON OFFROAD The Pink Carbon 12K - 12000lb Pink Winch With Pink Hook V3

SKU: CW-12KV3P

Regular price $1,092.50 AUD
Regular price $1,150.00 AUD Sale price $1,092.50 AUD
Sale Sold out
Shipping calculated at checkout.
  • Part number: CW-12k
  • Rated line pull: 12000 lbs, (5450 kg) single-line
  • Motor: 12V DC 6.2HP series wound motor (24V option available)
  • Remote Control: Remote Switch, 12ft (3.7m) lead.
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary.
  • Gear Ratio: 216:1
  • Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
  • Brake: Full load automatic brake installed in the motor housing end plate.
  • Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Synthetic Rope: 24m x 10mm diameter
  • Drum Diameter/Length: 64mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm)
  • Packing Dimensions (L x W x H): 24.2" x 14.5" x 9.8" (615 x 370 x 250mm)
  • Winch weight with synthetic rope attached: VERSION 3 - 19.0kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
