CARBON WINCH
Carbon Scout Pro - 15000lb Winch V3
Carbon Scout Pro - 15000lb Winch V3
SKU: CW-XD15BLK
Regular price
$1,299.00 AUD
Regular price
Sale price
$1,299.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

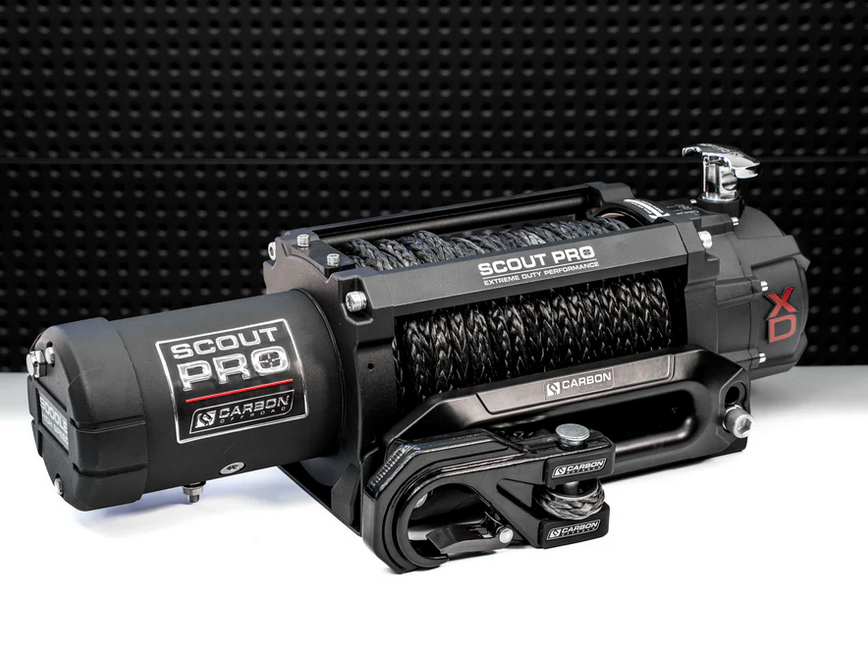

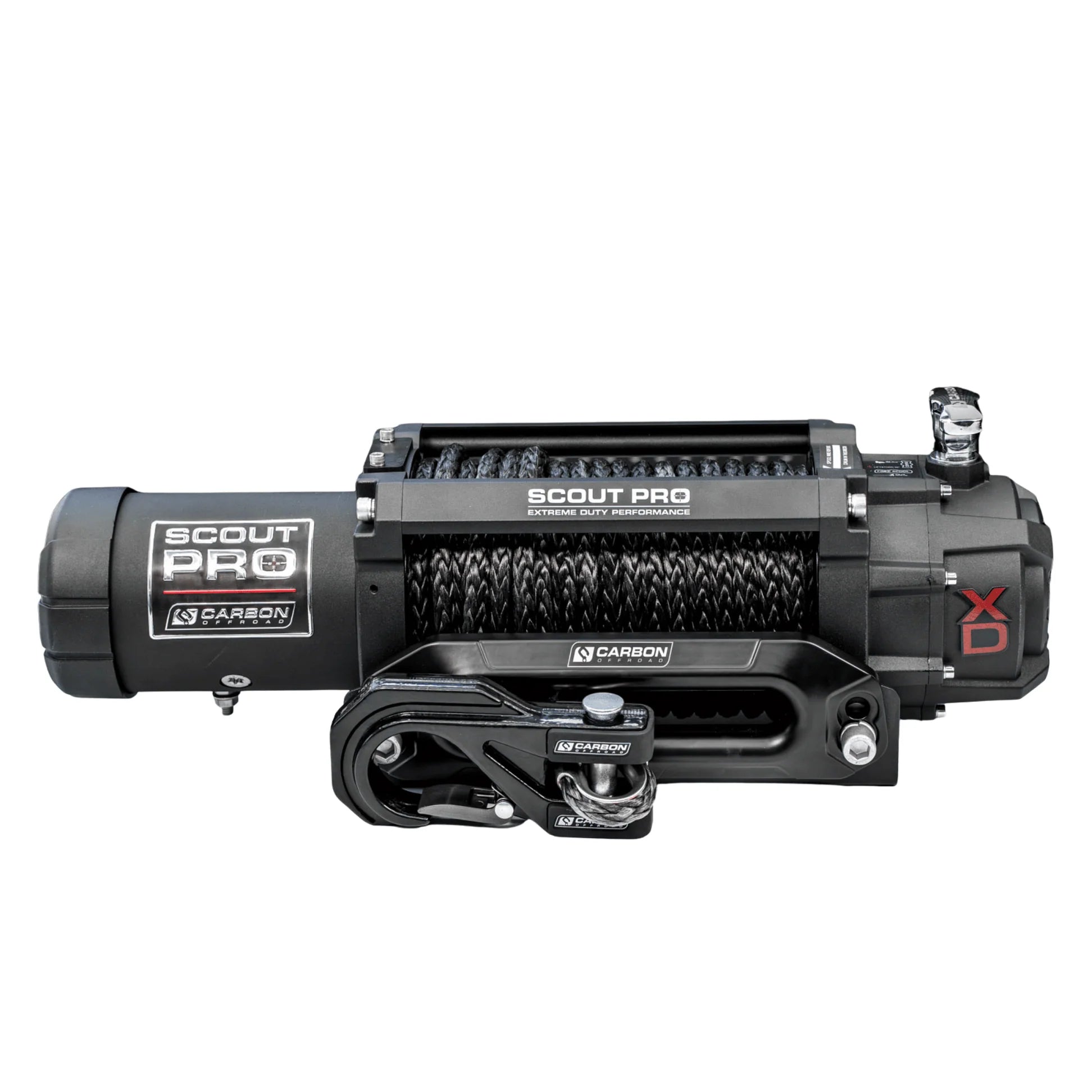

Carbon Offroad Scout Pro 15K Winch—15,000lb pulling power bridging 12K and truck-grade 20K units. Features a 7.0HP motor, 11mm UHMWPE rope, forged thimble, MegaPro hook, premium fairlead, and wired/wireless remotes. Built tough for heavy rigs and extreme off-road recoveries.
- Part number: CW-XD15
- Rated line pull: 15000 lbs, (6803kg) single-line
- Motor: 12V DC 7 HP series wound motor (24V option available)
- Remote Control: Wired with 3.6m lead
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 218:1
- Rotating Ring Gear
- Brake: Automatic brake in the motor bracket
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 11mm diameter
- Drum Diameter/Length: 63.5mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 535 x 158 x 187mm
- Packing Dimensions (L x W x H): 580 x 200 x 220mm
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7
**PLEASE LET ME KNOW IF YOU WOULD LIKE ANOTHER COLOUR HOOK (BLUE, GREEN, ORANGE, RED, YELLOW, PINK, PURPLE, SILVER)
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 27.9(8.5) | 65 | 1/15000(6810) |
| 2000(910) | 11.8(3.6) | 120 | 2/12700(5765) |
| 6000(2720) | 9.5(2.9) | 160 | 3/10770(4890) |
| 10000(4540) | 6.6(2.0) | 215 | 4/9130(4145) |
| 13000(5900) | 4.6(1.4) | 265 | - |
| 15000(6818) | 3.6(1.1) | 380 | - |
