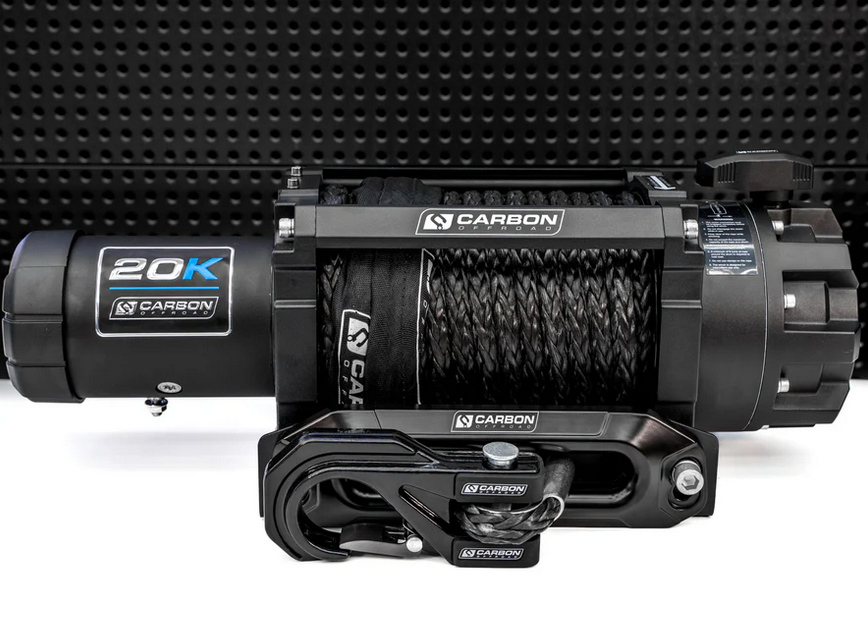

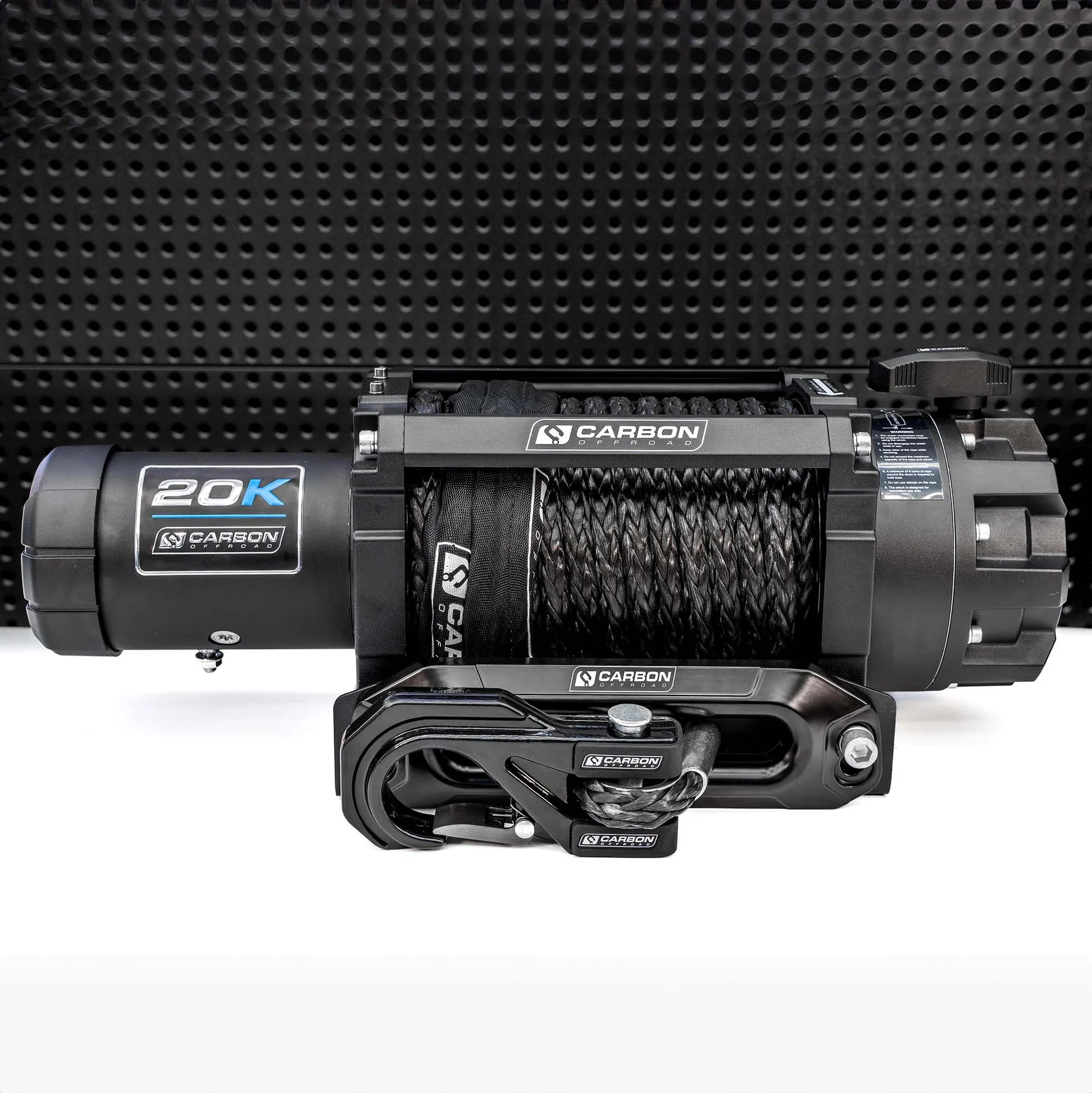

- Part number: CW-XD20
-
Rated line pull: 20000 lbs, (9072kg) single-line
-
Motor: 12V DC 7 HP series wound motor (24V option available)
-
Remote Control: Wired with 3.6m lead
-
Wireless Remote Control: Included
-
Geartrain: 3-Stage Planetary
-
Gear Ratio: 345:1
-
Rotating Ring Gear
-
Brake: Automatic brake in the motor bracket
-
Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 25m x 13mm diameter
- Drum Diameter/Length: 88mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 579 x 192 x 224mm
- Packing Dimensions (L x W x H): 640 x 250 x 345mm
- Winch weight with synthetic rope attached: 30kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 37kg
**PLEASE LET ME KNOW IF YOU WOULD LIKE ANOTHER COLOUR HOOK (BLUE, GREEN, ORANGE, RED, YELLOW, PINK, PURPLE, SILVER)
| Line Pull lbs (kgs) |
Line Speed ft/min (m/min) |
Motor Current (Amps) |
Rated Line Pull Position lbs (kgs) |
| 0 |
13.8(4.2)26.2(8.0) |
70 |
1/20000(9072) |
| 4000(1814) |
10.8(3.3) |
145 |
2/16140(7321) |
| 8000(3629) |
8.5(2.6 |
230 |
3/13520(6133) |
| 12000(5443) |
6.2(1.9) |
310 |
4/11660(5289) |
| 16000(7257) |
4.6(1.4) |
390 |
- |
| 20000(9072) |
3.3(1.0) |
460 |
- |
