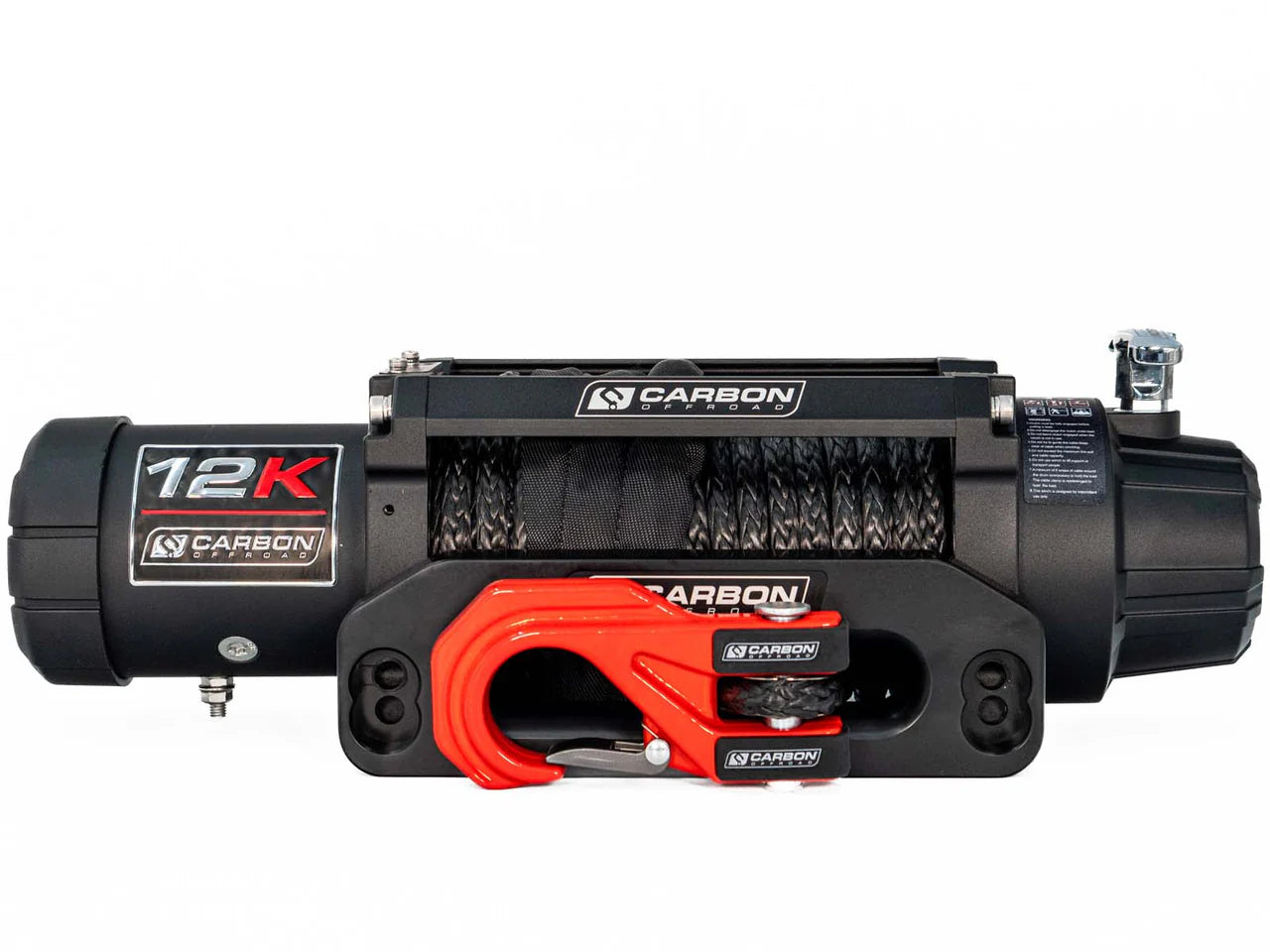

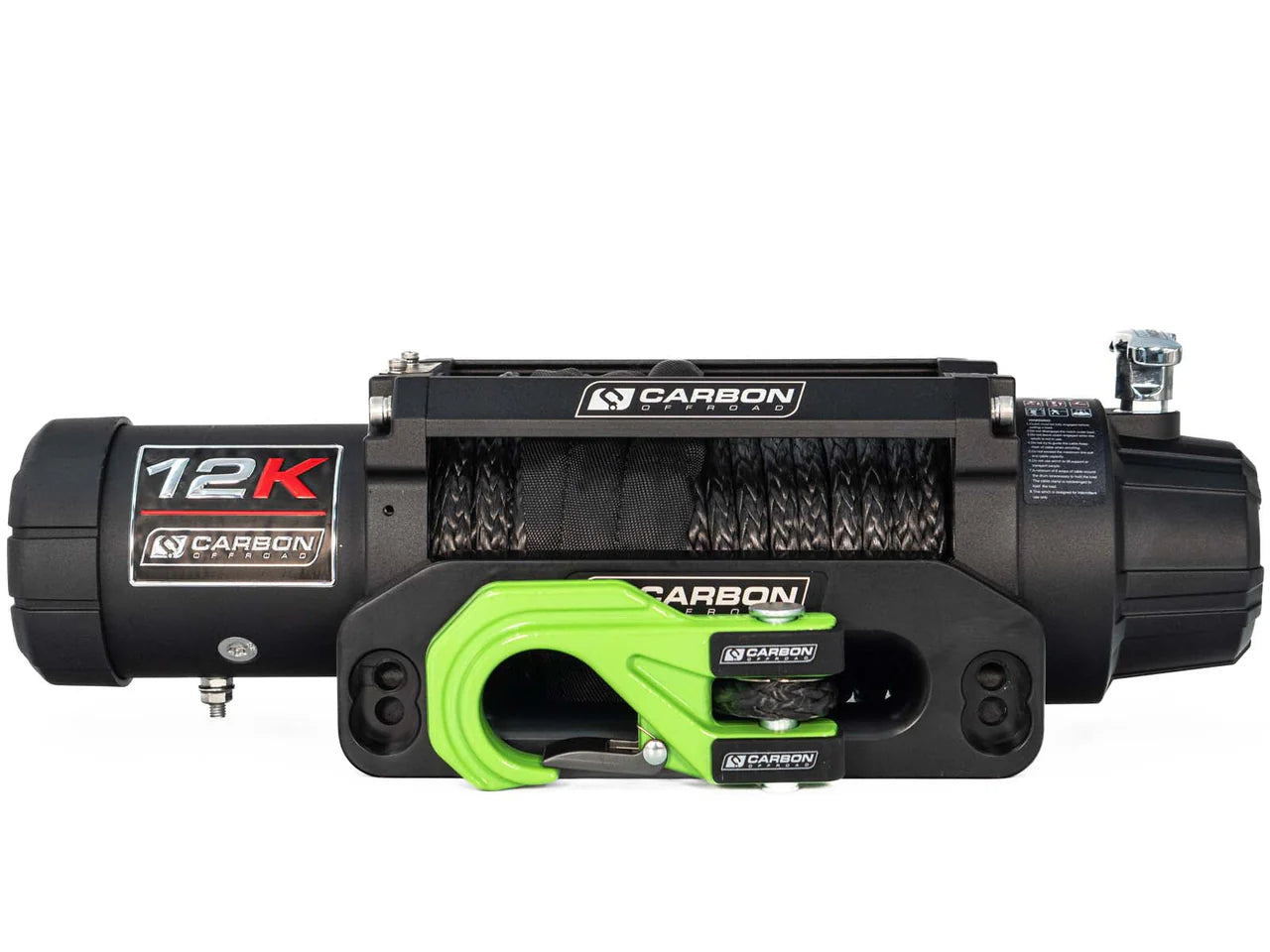

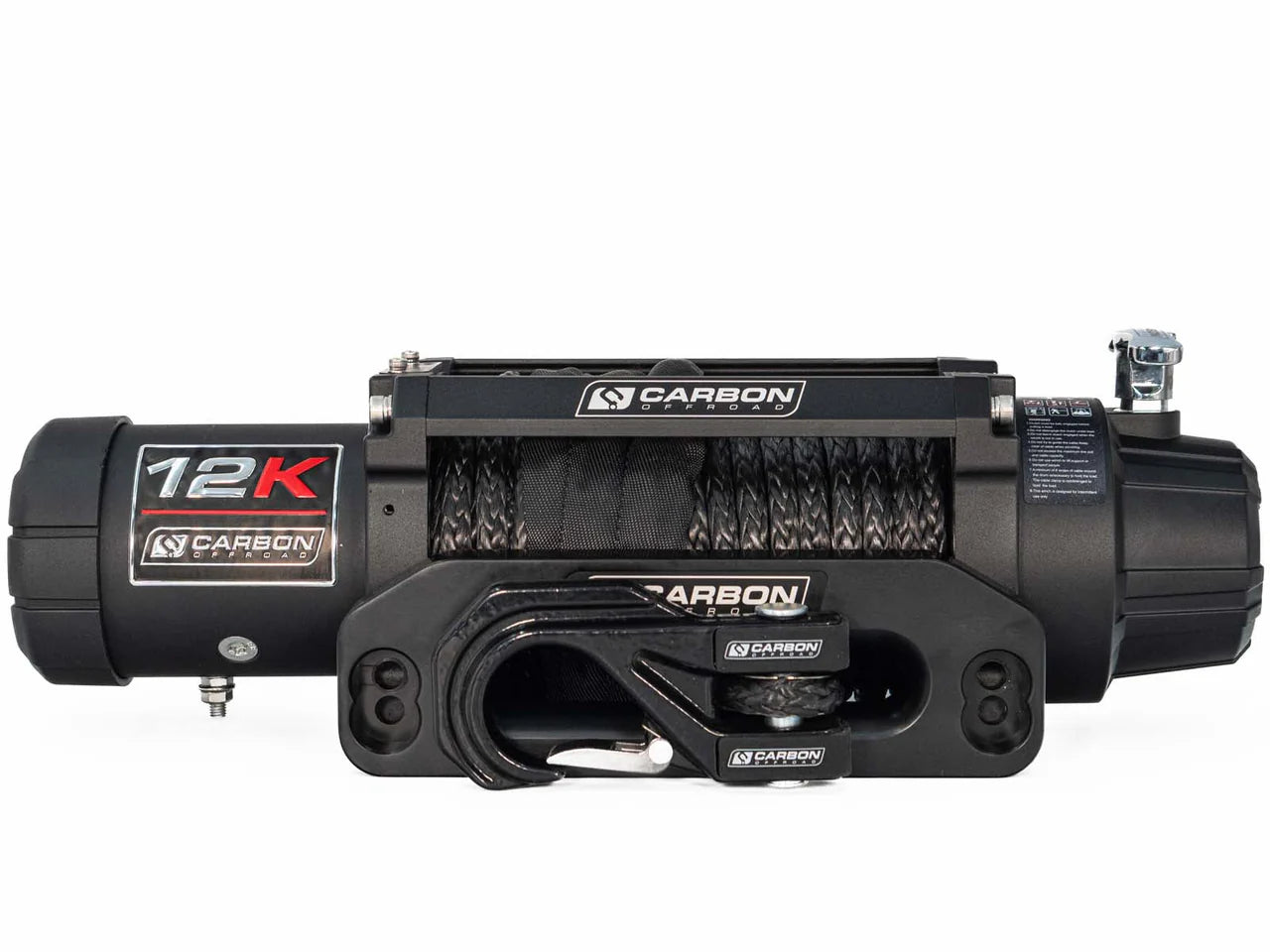

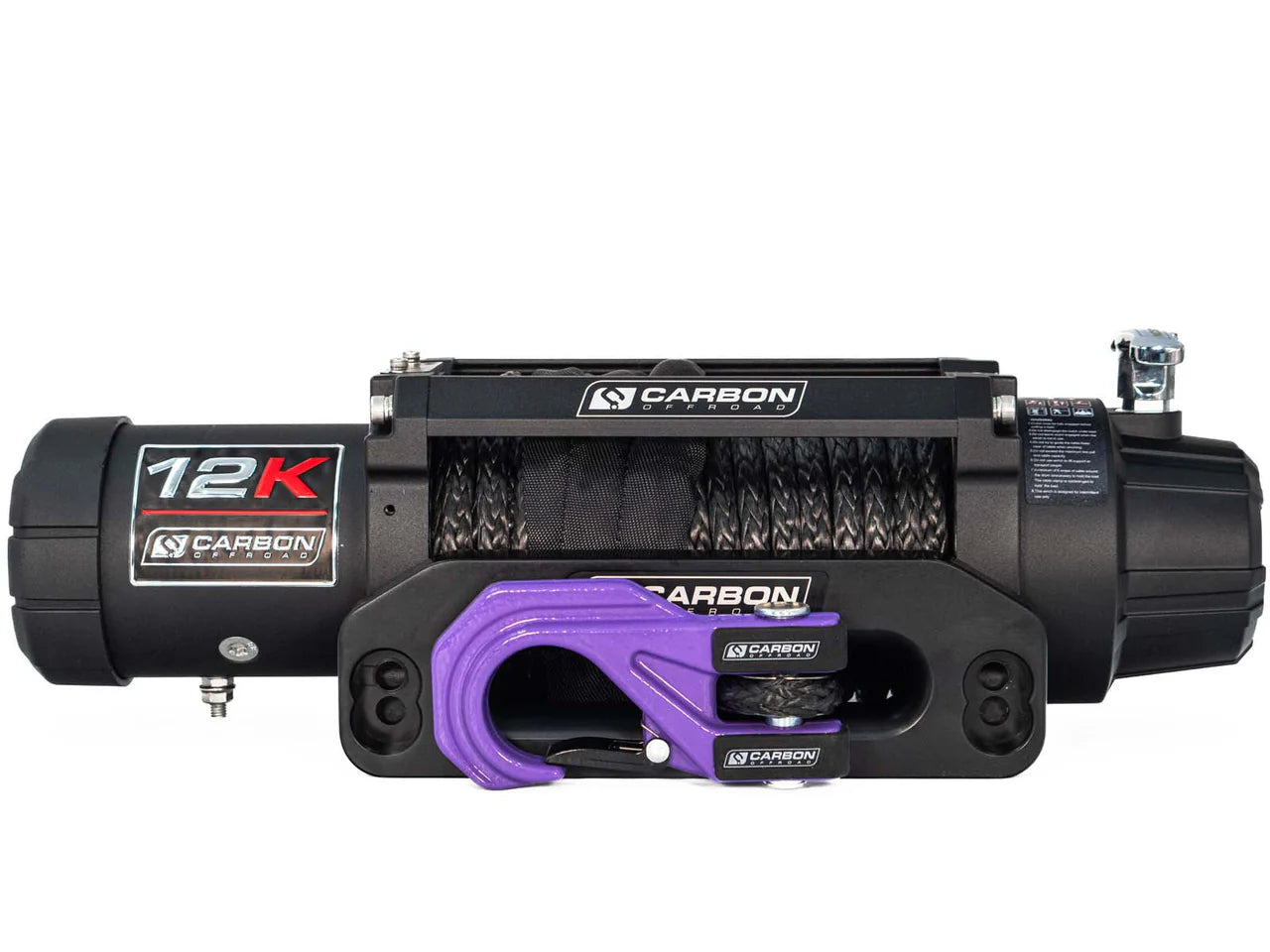

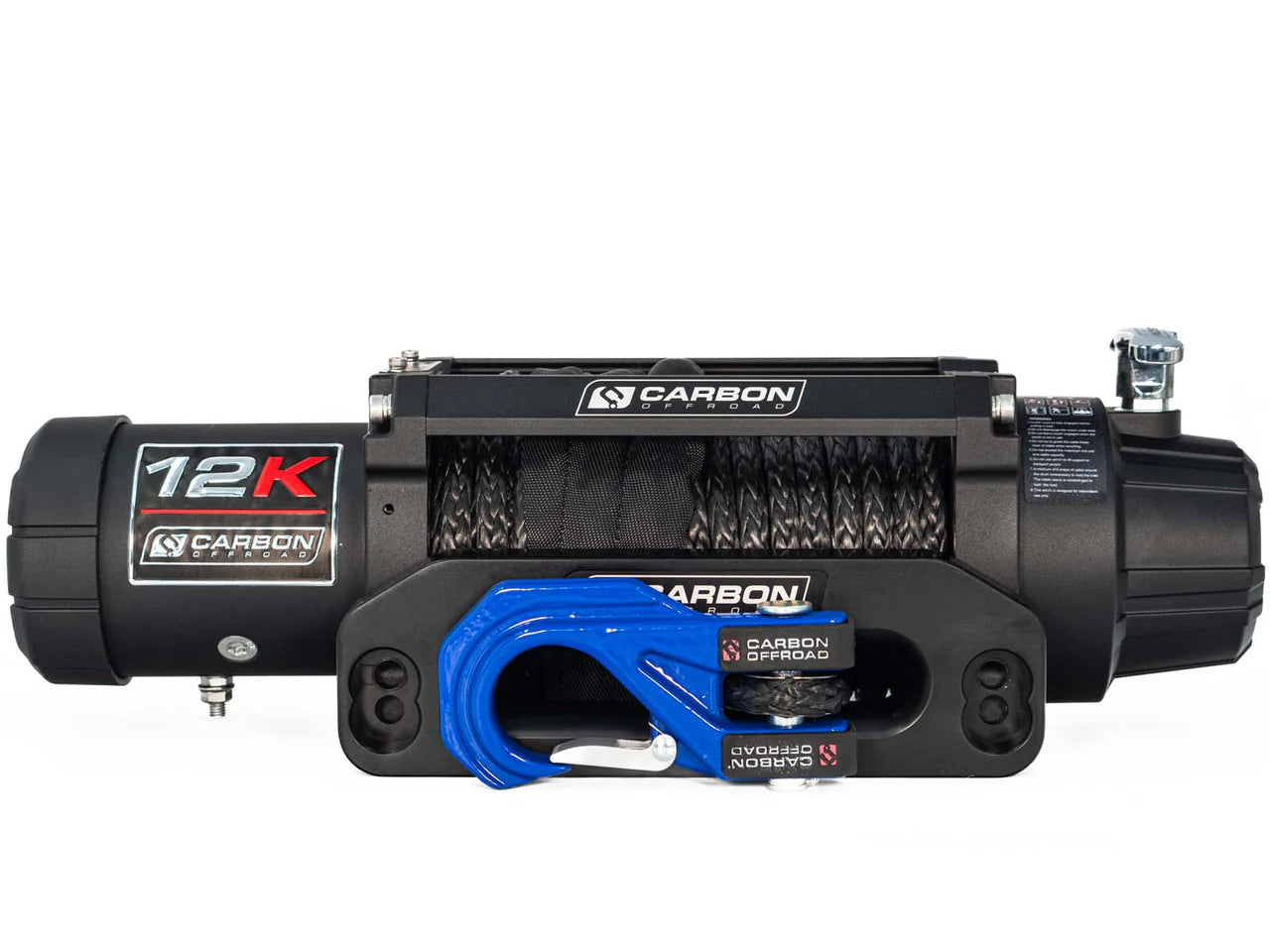

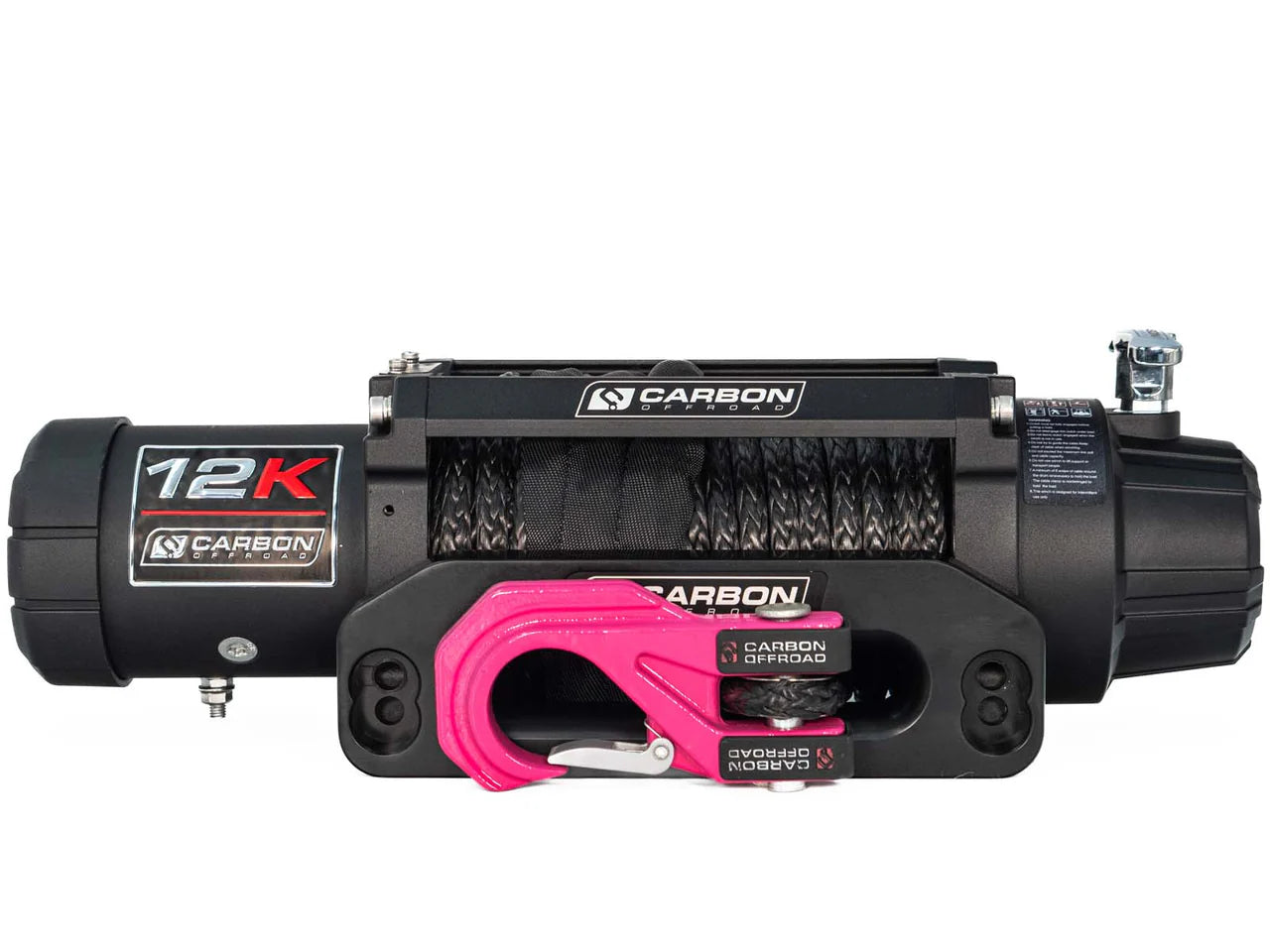

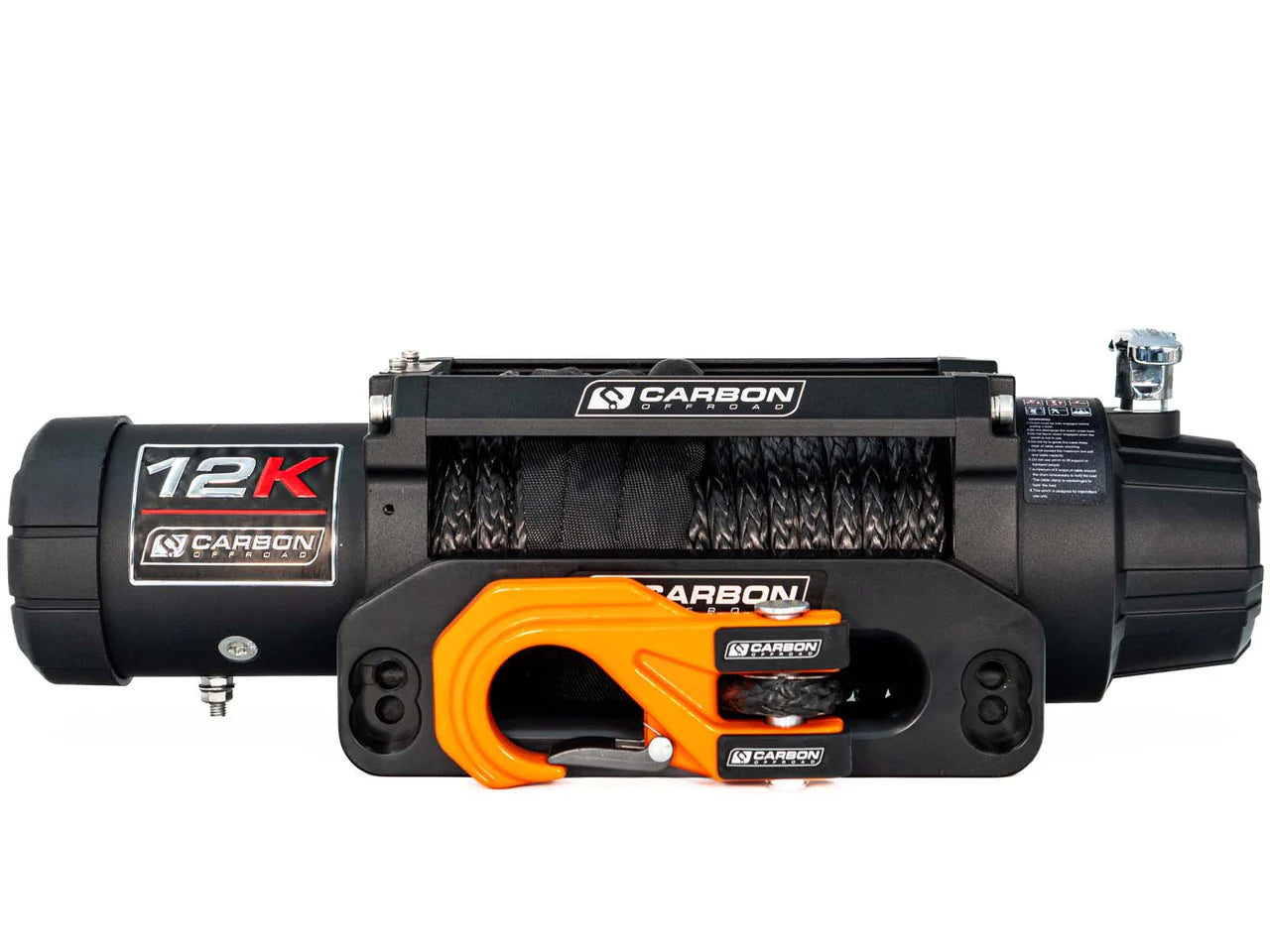

CARBON WINCH 12K 12000LB ELECTRIC WINCH 12V / 24V ( V3X) NEW VERSION

Carbon 12K Winch – Lightweight 19.7 kg, high-performance 12,000 lb winch with 6 HP motor, triple planetary gearbox, and IP68 waterproofing. Comes as a complete kit with synthetic rope, CNC alloy fairlead, wired and wireless remotes, and isolator switch. Built for tough Australian off-road conditions, backed by a lifetime geartrain and 5-year electrical/water ingress warranty.

• Part number: CW-12KV3X
• Rated line pull: 12000 lbs, (5450 kg) single-line
• Motor: 12V DC 6HP series wound motor (24V option available)
• Remote Control: Remote Switch, 12ft (3.7m) lead.
• Wireless Remote Control: Included
• Geartrain: 3-Stage Planetary.
• Gear Ratio: 218:1
• Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
• Brake: Full load automatic brake installed in the motor housing end plate.
• Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
• Limited Lifetime Mechanical Warranty
• 5 Year Electrical Warranty
• 5 Year Water Ingress Protection Warranty
• Synthetic Rope: 24m x 10mm diameter
• Drum Diameter/Length: 63mm x 224mm
• Mounting Bolt Pattern: 254mm x 114.3mm
• Recommended Battery: 650 CCA minimum for winching
• Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2" x 6.2" x 7.4")
• Packing Dimensions (L x W x H): 580 x 200 x 220mm (22.8" x 7.9" x 8.7")
• Winch weight with synthetic rope attached: VERSION 3X - 19.7kg
• Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.65kg
