DRIVETECH 4X4 12V CONTROL BOX
DRIVETECH 4X4 12V CONTROL BOX
SKU: DT-02009
Couldn't load pickup availability

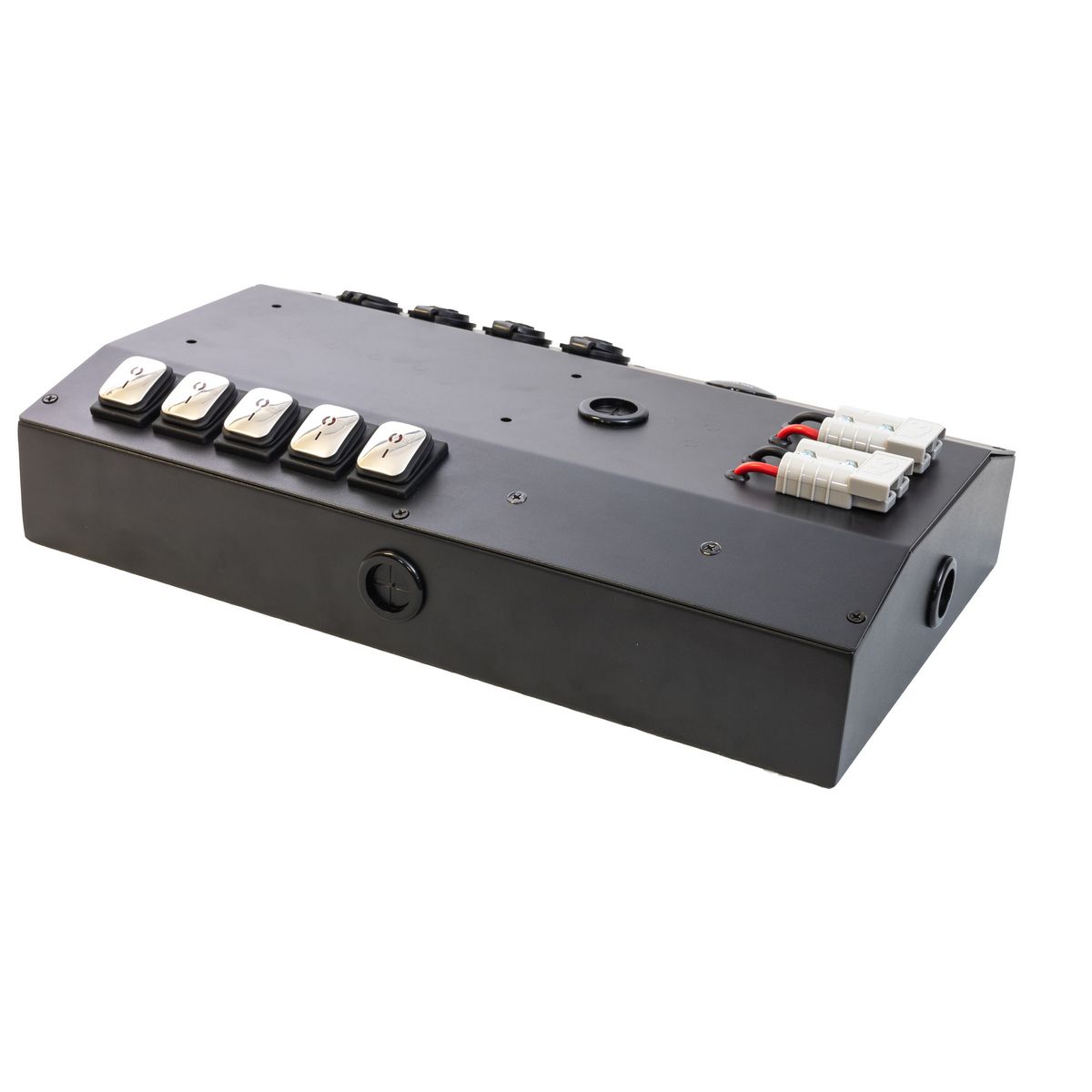

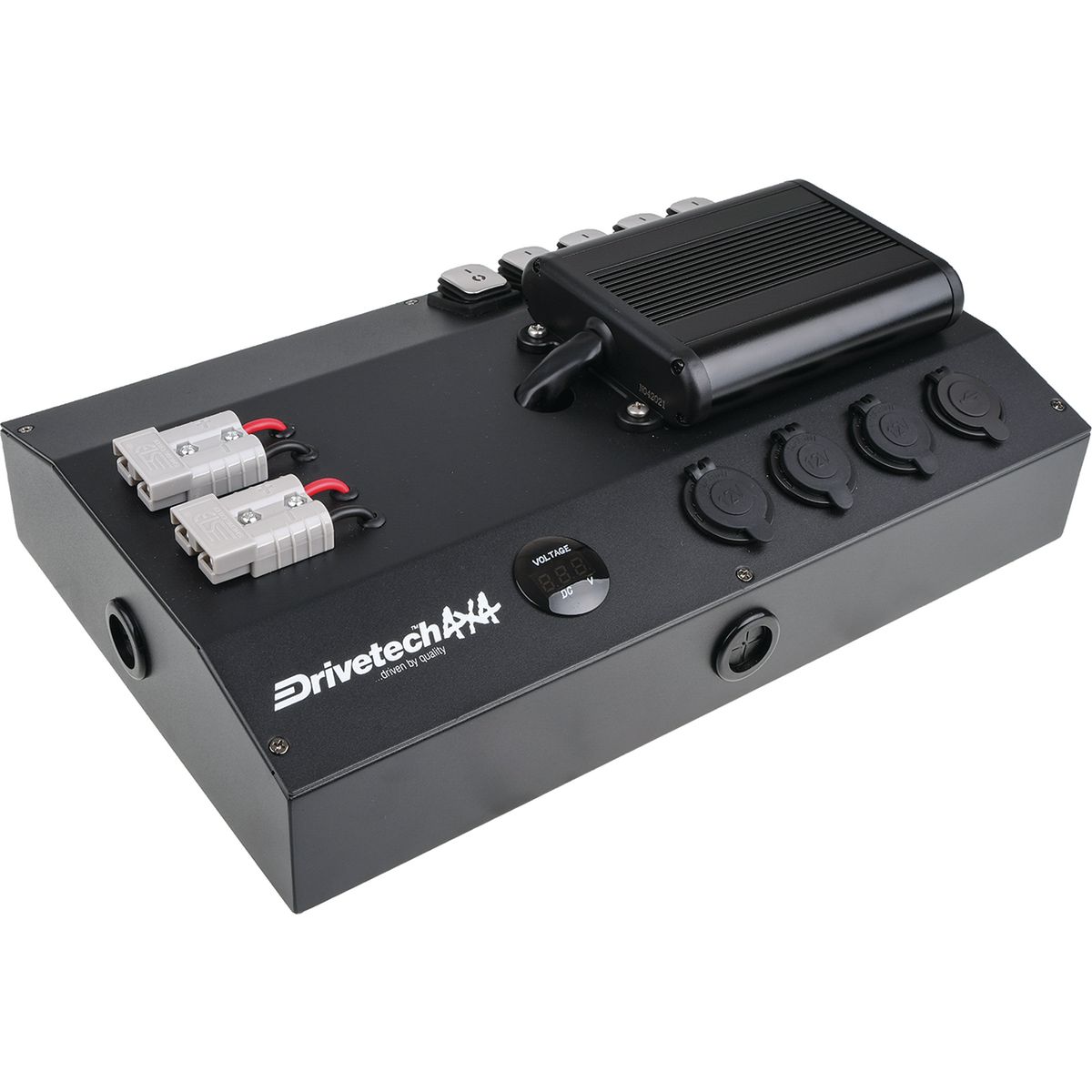

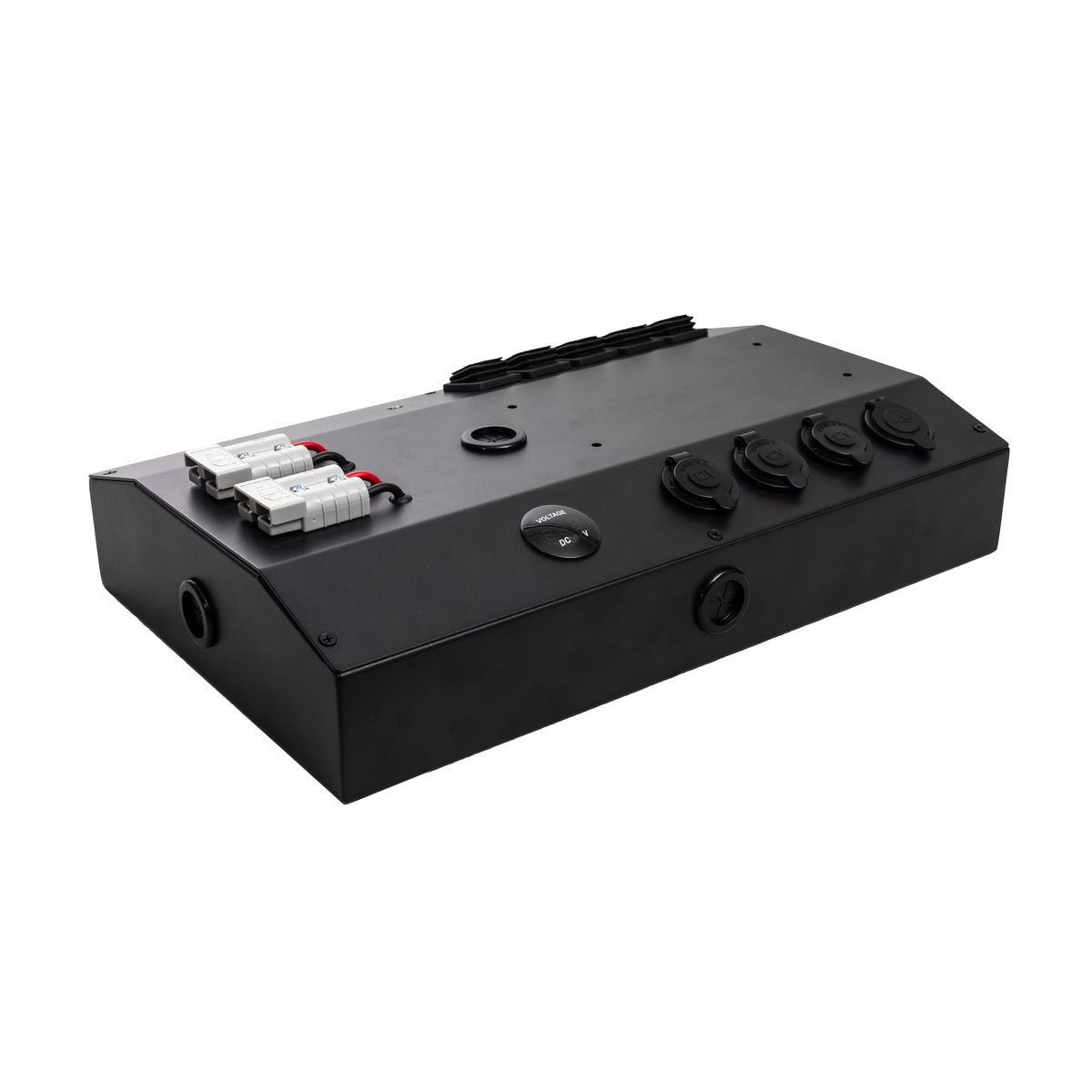

12V CONTROL BOX
Complete easy-to-fit wiring solution for 4x4’s, camper trailers and caravans.
Includes auto reset circuit breakers to eliminate the need to carry fuses, and features multiple positive and negative input/output studs.
With easy to follow fitting and wiring instructions, the control box is compatible with a wide range of DC-DC’s and solar regulators.
SPECIFICATIONS
Laser cut powder coated alloy case (2mm top, 1.5mm case)
6x Automatic re-settable circuit breakers (2x 25A on Anderson style plugs, 4x 15A for switches and power/USB sockets)
1x 29mm Round voltmeter
3x 29mm Round power sockets (20A maximum)
1x 29mm Round dual USB sockets (1x 5V 2.4A, 1x 1A) 2x Anderson plugs with circuit breakers
5x Switches with sticker kit (10A maximum) Mounting points for DC-DC charger
1x Negative busbar
2x Positive 8mm studs
1x Negative 8mm stud
4x 25mm Entry grommets (1 per side)
Box dimensions 400x250x80mm
12 Month warranty
