GARRETT G-Smart Speed Sensor Module Kit (Base + Harness + Flange Sensor)

Garrett G-Smart Module Kit with a Flange Sensor

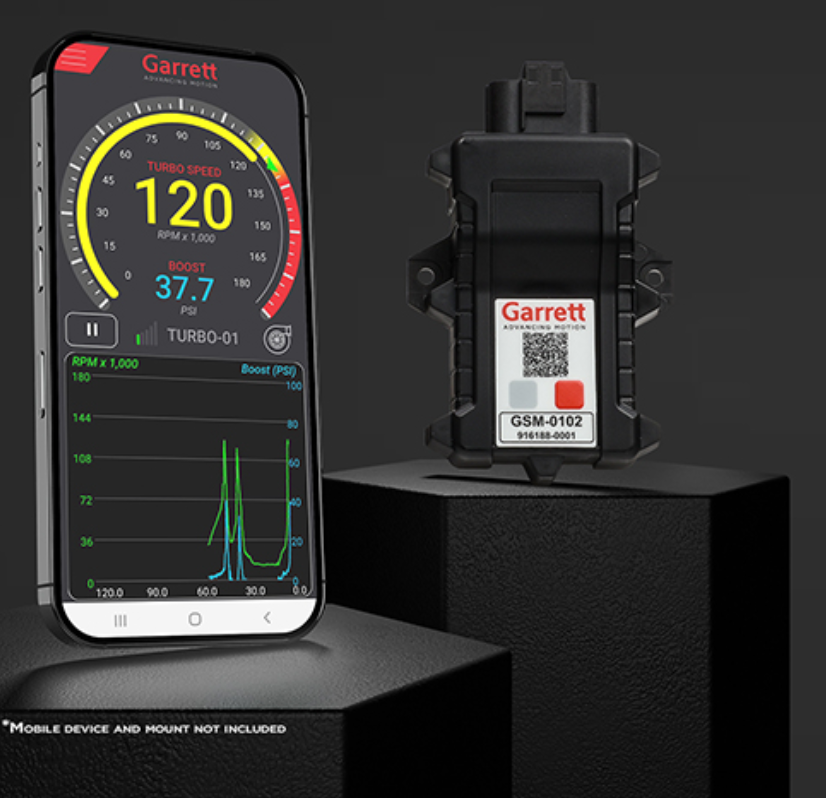

The G-Smart module connects to a speed sensor in your turbo via a supplied plug’n’play harness. It then connects to your mobile device (Apple or Android) via Bluetooth. Bluetooth connectivity means no wires through the firewall and a quick, and easy installation.

Product Features

• Live turbo speed and boost pressure (if connected) in a in a dynamic gauge and graphic format
• Marker on gauge sweep indicates peak turbo speed
• Min/Max Turbo speed and boost pressure stored in the app for future analysis
• Gauge sweep will transition colour (G,Y,R) signalling the approach to max-rated turbo speed
• The graph plot length can display up to 120 seconds of live data.
• Live data feed can be paused allowing users to review data points within the plot length.
• Use the analog output to an external data logger/ECU for complete data logging

Product Setup

A 12V switched power and sufficient ground connection are all you need to get started. The Sensor Setup menu is pre-loaded with existing Garrett Turbocharger part numbers, models, compressor wheel blade counts and max-rated turbo speeds.

Want to get creative? Custom configurations can also be created for Garrett models without speed sensor ports or for non-Garrett manufactured turbochargers that utilize the same style speed sensors.

Included in the kit

• Garrett G-Smart Module
• Plug’n’Play Adaptor Harness
• Flange-type turbo speed sensor
• Free app (download from Google Play or Apple App Store)
(no turbo speed sensor included in this kit)
