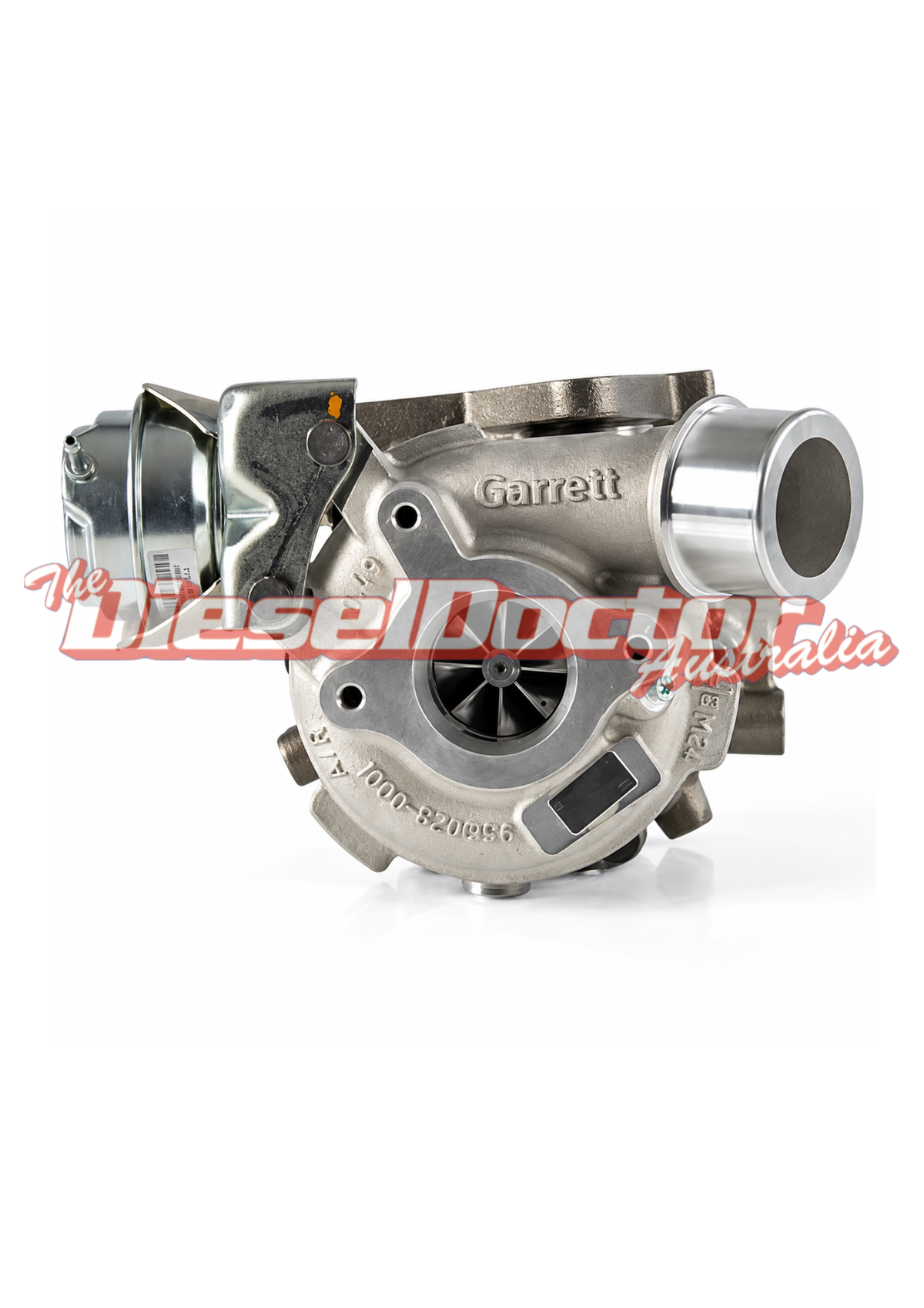

GARRETT PowerMax Turbo Charger GTD1749V Suits Mitsubishi Triton MQ 2.4L 4N15 2015-2018

This Garrett PowerMax direct-fit turbocharger is specifically designed for the 4N15, 2.4L turbo diesel engine found in Mitsubishi Triton MQ and also Pajero Sport QE and QF. The billet, upgraded compressor wheel increases flow by 22% over the OE wheel. This enables the engine to be tuned up to 194kW from OE standard 133kW. All Garrett PowerMax direct fit turbochargers are outline interchangeable with the OE turbocharger ensuring a perfect fit every time.

Complete Turbocharger Assembly
The Garrett PowerMax direct-fit turbocharger for the Mitsubishi Pajero Sport QE QF and Triton MQ is engineered as a complete, direct-fit replacement for the factory unit. Each assembly includes a calibrated actuator and matches the original OEM footprint, allowing reuse of factory mounting locations, oil and coolant connections, and intake and exhaust interfaces for straightforward installation.

Turbo Speed Monitoring
This turbocharger includes a fully machined speed sensor port for turbo speed monitoring and tuning optimisation. We recommend using a G-Smart bluetooth module + app (G923586-0002) or Turbo Speed Sensor + Gauge Kit (G781328-0001) or Pro Turbo Speed Sensor Kit (G781328-0002).

Proven Performance
On-vehicle testing produced a 52% increase in power output at the wheels (86kW up to 131kW) and a 23% increase in torque (361Nm up to 445Nm) with ECU recalibration.

Brand: Garrett
Type: PowerMax, bolt-on replacement
Application: Mitsubishi Triton MQ, Pajero Sport QE, QF (2015-18)
Engine Manufacturer: Mitsubishi
Engine Model: 2.4L, 4N15
Fuel Type: Diesel

OEM Turbocharger: GTB2256VK
Turbocharger Part Number: G954952-5001S
Turbocharger Factory Part Numbers: 1515A295, 49335-01412

Included in the Kit:
• Garrett PowerMax Bolt-On Turbocharger
• Calibrated wastegate actuator
• Gasket Kit sold separately - see related products below.

Product Notes:
To get the most out of your new PowerMax turbocharger we recommend re-tuning your vehicle. Without tuning, the overall torque/power results may vary.
