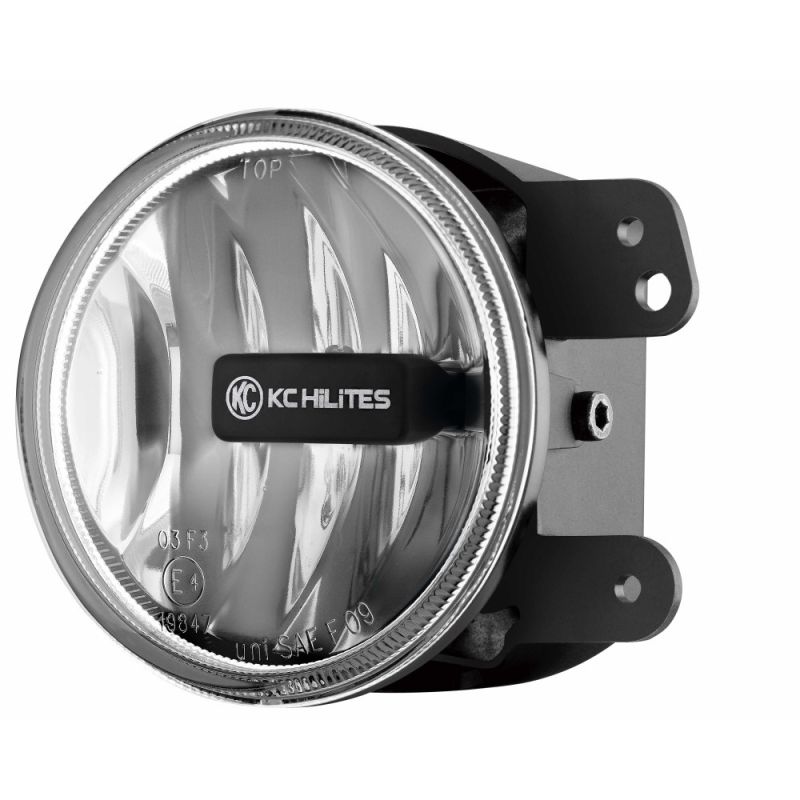

KC HILITES 4" Gravity LED G4 SAE Fog Light - Fog Beam - Single - 07-09 Jeep JK
KC HILITES 4" Gravity LED G4 SAE Fog Light - Fog Beam - Single - 07-09 Jeep JK
SKU: 1494
Regular price
$378.40 AUD
Regular price
Sale price
$378.40 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NOTE: This is on a 1-6 week PRE-ORDER basis, please contact us before purchase for a more accurate time frame.
KC HiLiTES 4" Gravity LED Replacement Fog Light feature powerful CREE LEDs in a Street Legal Fog Beam pattern. Lightweight magnesium housing and polycarbonate lens, with universal adjustable bracket for easy OE mounting on 07-09 Jeep JKs.
FEATURES
-10W 4" Gravity LED Fog Light
-Light Weight Magnesium Housing for Maximum Heat Dissipation
-Bolt-On 07-09 Jeep JK Application
-Shatter Resistant Polycarbonate Lens
-Fog Beam Pattern (SAE & ECE Street Legal)
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 866 lm
-Compliance: SAE J583 & ECE-R19 Street Legal
-Lux @ 10 Meters: 150 lx
-Candela: 15,000 cd
-Beam Distance (Meters): 245m
SPECIFICATIONS (PER LIGHT)
-Wattage: 10W
-LED Source: CREE High Power LED
-Amp Draw: .74A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 3.94" x H - 3.94" x D - 2.97"
Gravity®EXTREME OUTPUT AND EFFICIENCY
4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's OE mounting system bolts directly up to OE bumper and OE fog light harness on Jeep JK models.
STRENGTH & DURABILITY
Constructed from an IP68 rated lightweight Magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
-10W 4" Gravity LED Fog Light
-Light Weight Magnesium Housing for Maximum Heat Dissipation
-Bolt-On 07-09 Jeep JK Application
-Shatter Resistant Polycarbonate Lens
-Fog Beam Pattern (SAE & ECE Street Legal)
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 866 lm
-Compliance: SAE J583 & ECE-R19 Street Legal
-Lux @ 10 Meters: 150 lx
-Candela: 15,000 cd
-Beam Distance (Meters): 245m
SPECIFICATIONS (PER LIGHT)
-Wattage: 10W
-LED Source: CREE High Power LED
-Amp Draw: .74A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 3.94" x H - 3.94" x D - 2.97"
Gravity®EXTREME OUTPUT AND EFFICIENCY
4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's OE mounting system bolts directly up to OE bumper and OE fog light harness on Jeep JK models.
STRENGTH & DURABILITY
Constructed from an IP68 rated lightweight Magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
| SKU | 1494 |
|---|---|
| Weight | 1.250000 |
| Compliance DOT/SAE/ECE | SAE J583, ECE R19 (Fog) |
| Light Technology | LED |
| Location on Vehicle | Bumper, Fog Pocket |
| Candela | 15,000 cd |
| Lumens | 866 lm |
| Lux | 150 lx |
| Beam Distance | 245 m |
| Wattage Per Light | 10W |
| Total Wattage | 10W |
| Voltage | 9V-32V |
| Amp Draw | 0.83 a |
| Beam Pattern | Fog |
| Light Temperature | 5000K |
| DOT Compliant | No |
| SAE/ECE | Yes |
| Lens Color | Clear |
| Light Color | White |
| Product Dimensions | W - 3.94" x H - 3.94" x D - 2.97" |
| Material | Magnesium Alloy |
| Finish | Black |
| UPC | 084709014940 |
| Color | Black |
| In The Box | Gravity LED G4 SAE/ECE Fog Light (Jeep JK 07-09) |
| Prop 65 | No |
| Size | 4" |
