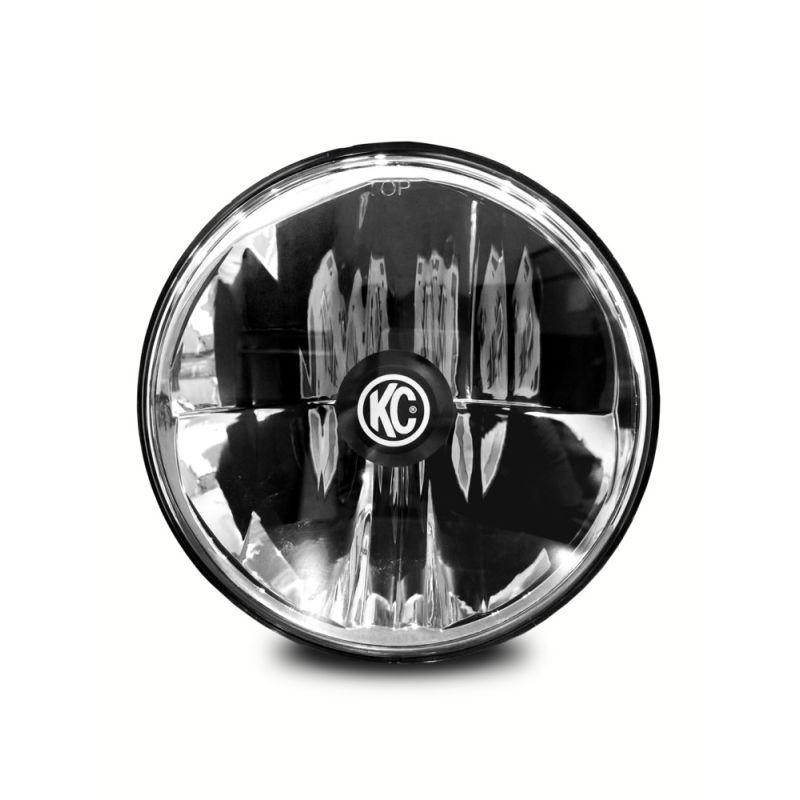

KC HILITES 7" Gravity LED DOT Headlight - Driving Beam - Single - 07-18 Jeep JK
KC HILITES 7" Gravity LED DOT Headlight - Driving Beam - Single - 07-18 Jeep JK
SKU: 4235
Regular price
$799.15 AUD
Regular price
Sale price
$799.15 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NOTE: This is on a 1-6 week PRE-ORDER basis, please contact us before purchase for a more accurate time frame.
KC HiLiTES Gravity LED 7" Jeep JK Headlight features bright CREE LEDs for DOT compliant Low/High beam for 07-18 Jeep JKs. Die-cast aluminum housing using KC Gravity Reflective Diode with polycarbonate lens for optical clarity and output.
FEATURES
-40W Gravity LED 7" Headlight
-Hard Coated Polycarbonate Lens
-Full Plug-n-Play for 07-18 Jeep JK Wrangler
-Precision Die-Cast Aluminum Housing
-KC Engineered Polished Reflector Optics
-DOT Compliant Low Beam, High Beam and Day Running Light (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
-Compliance: SAE J851 & ECE-R112
-Lux @ 10 Meters: Low- 415 lx, High- 775 lx
-Candela: Low- 41,500 cd, High- 77,500 cd
-Beam Distance: Low- 407m, High- 557m
SPECIFICATIONS (PER LIGHT)
-Wattage: Low- 18W, High- 22W
-LED Bulb: CREE XHP35 HI and Nichia
-Color Temperature: 5000K
-Amp Draw: 1.88A
-Voltage: 9V-18V
-IP Rating: IP68
-Product Dimensions: W - 6.96" x D - 3.72"
PARTS INCLUDED
-Plug and Play H13 Connector for Jeep JK
GRAVITY EXTREME OUTPUT AND EFFICIENCY
Gravity LED 7" Headlights feature KC's patented Gravity Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
HIGH/LOW/DRL FUNCTIONS BUILT IN
KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights.
DESIGNED FOR DURABILITY
Surrounding our Gravity LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.
-40W Gravity LED 7" Headlight
-Hard Coated Polycarbonate Lens
-Full Plug-n-Play for 07-18 Jeep JK Wrangler
-Precision Die-Cast Aluminum Housing
-KC Engineered Polished Reflector Optics
-DOT Compliant Low Beam, High Beam and Day Running Light (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
-Compliance: SAE J851 & ECE-R112
-Lux @ 10 Meters: Low- 415 lx, High- 775 lx
-Candela: Low- 41,500 cd, High- 77,500 cd
-Beam Distance: Low- 407m, High- 557m
SPECIFICATIONS (PER LIGHT)
-Wattage: Low- 18W, High- 22W
-LED Bulb: CREE XHP35 HI and Nichia
-Color Temperature: 5000K
-Amp Draw: 1.88A
-Voltage: 9V-18V
-IP Rating: IP68
-Product Dimensions: W - 6.96" x D - 3.72"
PARTS INCLUDED
-Plug and Play H13 Connector for Jeep JK
GRAVITY EXTREME OUTPUT AND EFFICIENCY
Gravity LED 7" Headlights feature KC's patented Gravity Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
HIGH/LOW/DRL FUNCTIONS BUILT IN
KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights.
DESIGNED FOR DURABILITY
Surrounding our Gravity LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.
| SKU | 4235 |
|---|---|
| Weight | 3.000000 |
| Compliance DOT/SAE/ECE | DOT, SAE J581, ECE R112 (Driving) |
| Light Technology | LED |
| Location on Vehicle | Headlight |
| Candela | Low- 41,500, High- 77,500 cd |
| Lumens | 1260 lm |
| Lux | Low- 415 lx, High- 775 lx |
| Beam Distance | 557 m |
| Wattage Per Light | 40W |
| Total Wattage | 40W |
| Voltage | 9V-18V |
| Amp Draw | 3.3 a |
| Beam Pattern | Driving |
| Light Temperature | 5000K |
| DOT Compliant | Yes |
| SAE/ECE | Yes |
| Lens Color | Clear |
| Light Color | White |
| Product Dimensions | W - 6.96" x D - 3.72" |
| Material | Aluminum Alloy |
| Finish | Black |
| UPC | 084709042356 |
| In The Box | Gravity LED 7" DOT Jeep JK 2007-2018 Headlight |
| Prop 65 | No |
| Size | 7" |
