KC HILITES FLEX ERA 1 - Standard Backup Light Kit
KC HILITES FLEX ERA 1 - Standard Backup Light Kit
LIGHT FORCE
NOTE: This is on a 1-6 week PRE-ORDER basis, please contact us before purchase for a more accurate time frame.
Looking to mount backup lights to your vehicle? The KC FLEX ERA 1 Backup Light Kit is a one-stop solution for everything needed from lights to wiring to mounts all in one convenient package.
Featuring the powerful and compact FLEX ERA 1, this kit pairs two FE1s pre-assembled in a spread beam pattern and a universal, bottom-mount bracket with a specially designed, extended-length backup harness to make the installation a breeze. Our KC FLEX ERA 1 Standard Backup Light Kit is perfect for those installing into a rear bumper with cutouts for reverse lights or dust lights.FEATURES-2 x FLEX ERA 1 Lights in Spread Beam-Two Power Modes for Style and Performance
Amber LED Backlight
Full Power (off-road use only)
-Black powder-coated for ultimate durability and strength-Compact Size for Bumpers with Light CutoutsIDEAL FOR:
Illuminating Immediate Areas as a Work Light
Shining Backwords as a Backup/Reverse light
Rear Facing Dust Light when paired with the FE1 Performance Yellow Lenses
PARTS INCLUDED-2 x FLEX ERA 1 Lights in Spread Beam-1 x Complete Wiring Harness for FLEX ERA Backup/Reverse LightsLIGHT PERFORMANCE (PER LIGHT)-Lumens: 2,430 lm-LUX @ 10 meters: 162 lx-Candela: 16,200 cd-Beam Distance (Meters): 127.3mSPECIFICATIONS (PER LIGHT)-Wattage: 5W (Amber Backlight) / 23W-Amp Draw: 0.83 A / 3.83 A-Voltage: 9V-36V-IP Rating: IP68FLEX ERA 1 LIGHTSContained in a compact size of less than 2.7", the FLEX ERA 1 packs major performance in a versatile package for rear-facing lighting. They feature dual power modes; one mode is for the full, high-power output, and the other illuminates an eclipse-like amber backlight.CUSTOMIZABLE and FLEXIBLEWe get it, everyone loves to personalize their rig. That's why we stuck with our tried and true FLEX LED tradition and ensured that you can change and stylize the colored accent bezel to match your rig. The FE1 bezels come standard in gold, but you can pick up the bezels in deep red, rich blue, or gloss black to suit your needs.
More Information
SKU
0520
Weight
5.000000
Light Technology
LED
Location on Vehicle
Bumper, Overhead, Rear / Back-up, Roof
Candela
4510 cd (flood) / 16200 cd (spread) / 31000 cd (spot)
Lumens
2430 lm
Lux
45.1 lx (flood) / 162 lx (spread) / 310 lx (spot)
Beam Distance
67.2 m flood / 127.3 m spread / 176.1 m spot
Wattage Per Light
5W / 23W
Total Wattage
10W / 46W
Voltage
9V-36V
Amp Draw
0.83 a / 3.83 a
Beam Pattern
Spread
Light Temperature
5000K
DOT Compliant
No
SAE/ECE
No
Lens Color
Clear
Light Color
Amber / White
Product Dimensions
W - 2.6" x H - 2.72" x D - 2.9"
Material
Aluminum Alloy
Finish
Black
UPC
084709005207
Color
Black
In The Box

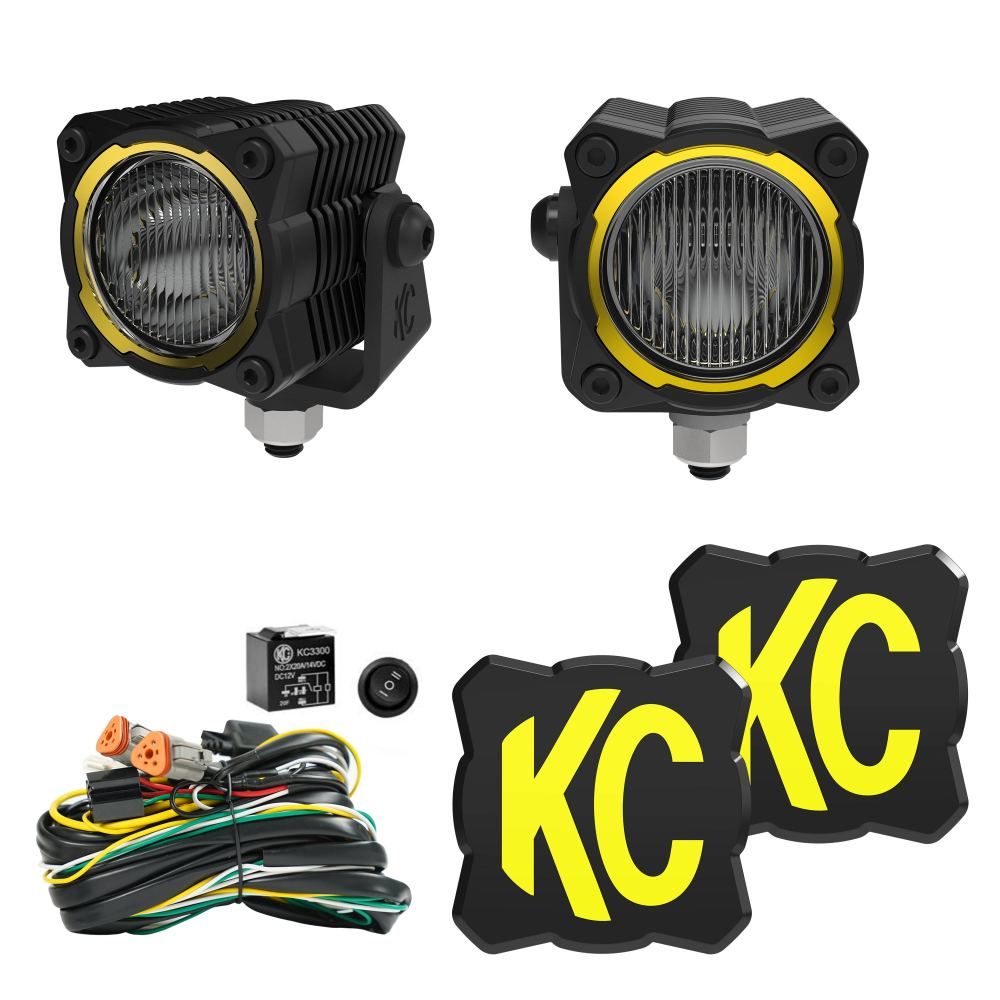

2 x KC FLEX ERA 1 LED Lights with Spread Lens, Extended Wiring harness with Weatherproof Connectors, 3-position switch, 2 x Mounting Bracket, 2 x KC Covers and Mounting hardware
IP rating
IP68
Prop 65
No
Size
3"
![KC HILITES FLEX ERA 1 - Standard Backup Light Kit]()
![KC HILITES FLEX ERA 1 - Standard Backup Light Kit]()
![KC HILITES FLEX ERA 1 - Standard Backup Light Kit]()
-Compact Size for Bumpers with Light Cutouts
IDEAL FOR:
-Compact Size for Bumpers with Light Cutouts
IDEAL FOR:
KC HILITES FLEX ERA 1 - Standard Backup Light Kit
-
1-4 DAYS DELIVERY
-
100% ORIGINAL AND QUALITY
-
24 MONTHS GUARANTEE
NOTE: This is on a 1-6 week PRE-ORDER basis, please contact us before purchase for a more accurate time frame.
Looking to mount backup lights to your vehicle? The KC FLEX ERA 1 Backup Light Kit is a one-stop solution for everything needed from lights to wiring to mounts all in one convenient package.
Featuring the powerful and compact FLEX ERA 1, this kit pairs two FE1s pre-assembled in a spread beam pattern and a universal, bottom-mount bracket with a specially designed, extended-length backup harness to make the installation a breeze. Our KC FLEX ERA 1 Standard Backup Light Kit is perfect for those installing into a rear bumper with cutouts for reverse lights or dust lights.
FEATURES
-2 x FLEX ERA 1 Lights in Spread Beam
-Two Power Modes for Style and Performance
- Amber LED Backlight
- Full Power (off-road use only)
-Compact Size for Bumpers with Light Cutouts
IDEAL FOR:
- Illuminating Immediate Areas as a Work Light
- Shining Backwords as a Backup/Reverse light
- Rear Facing Dust Light when paired with the FE1 Performance Yellow Lenses
PARTS INCLUDED
-2 x FLEX ERA 1 Lights in Spread Beam
-1 x Complete Wiring Harness for FLEX ERA Backup/Reverse Lights
LIGHT PERFORMANCE (PER LIGHT)
-Lumens: 2,430 lm
-LUX @ 10 meters: 162 lx
-Candela: 16,200 cd
-Beam Distance (Meters): 127.3m
SPECIFICATIONS (PER LIGHT)
-Wattage: 5W (Amber Backlight) / 23W
-Amp Draw: 0.83 A / 3.83 A
-Voltage: 9V-36V
-IP Rating: IP68
FLEX ERA 1 LIGHTS
Contained in a compact size of less than 2.7", the FLEX ERA 1 packs major performance in a versatile package for rear-facing lighting. They feature dual power modes; one mode is for the full, high-power output, and the other illuminates an eclipse-like amber backlight.
CUSTOMIZABLE and FLEXIBLE
We get it, everyone loves to personalize their rig. That's why we stuck with our tried and true FLEX LED tradition and ensured that you can change and stylize the colored accent bezel to match your rig. The FE1 bezels come standard in gold, but you can pick up the bezels in deep red, rich blue, or gloss black to suit your needs.
| SKU | 0520 |
|---|---|
| Weight | 5.000000 |
| Light Technology | LED |
| Location on Vehicle | Bumper, Overhead, Rear / Back-up, Roof |
| Candela | 4510 cd (flood) / 16200 cd (spread) / 31000 cd (spot) |
| Lumens | 2430 lm |
| Lux | 45.1 lx (flood) / 162 lx (spread) / 310 lx (spot) |
| Beam Distance | 67.2 m flood / 127.3 m spread / 176.1 m spot |
| Wattage Per Light | 5W / 23W |
| Total Wattage | 10W / 46W |
| Voltage | 9V-36V |
| Amp Draw | 0.83 a / 3.83 a |
| Beam Pattern | Spread |
| Light Temperature | 5000K |
| DOT Compliant | No |
| SAE/ECE | No |
| Lens Color | Clear |
| Light Color | Amber / White |
| Product Dimensions | W - 2.6" x H - 2.72" x D - 2.9" |
| Material | Aluminum Alloy |
| Finish | Black |
| UPC | 084709005207 |
| Color | Black |
| In The Box | 2 x KC FLEX ERA 1 LED Lights with Spread Lens, Extended Wiring harness with Weatherproof Connectors, 3-position switch, 2 x Mounting Bracket, 2 x KC Covers and Mounting hardware |
| IP rating | IP68 |
| Prop 65 | No |
| Size | 3" |
