KC HILITES Gravity LED G4 Fog Light Pair Pack System - 10-18 Jeep JK
KC HILITES Gravity LED G4 Fog Light Pair Pack System - 10-18 Jeep JK
SKU: 0497
Regular price
$756.80 AUD
Regular price
Sale price
$756.80 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NOTE: This is on a 1-6 week PRE-ORDER basis, please contact us before purchase for a more accurate time frame.

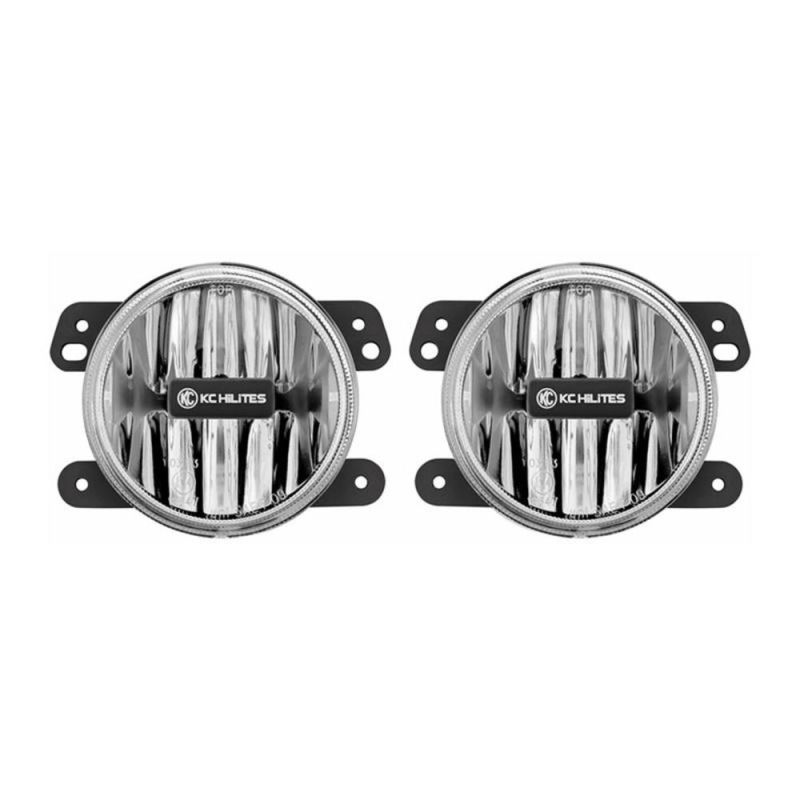

KC Hilites 4" Gravity LED Fog Light features bright CREE LEDs in a street legal fog beam pattern. Sealed magnesium housing and polycarbonate lens. Pair pack includes factory wire connectors and bracket for easy mounting on 10-24 Jeep JK/JL/JTs. Note: Does not fit Jeep Hard Rock Edition bumper, steel or sport bumpers
FEATURES
-2 x 10W 4" Gravity LED Fog Lights
-Lightweight Magnesium Housing for Maximum Heat Dissipation
-Street Legal 10-24 Jeep JK/JL/JT Applications
-Shatter Resistant Polycarbonate Lens
-Fog Beam Pattern (SAE & ECE Street Legal)
-2 x 10W 4" Gravity LED Fog Lights
-Lightweight Magnesium Housing for Maximum Heat Dissipation
-Street Legal 10-24 Jeep JK/JL/JT Applications
-Shatter Resistant Polycarbonate Lens
-Fog Beam Pattern (SAE & ECE Street Legal)
| SKU | 0497 |
|---|---|
| Weight | 3.000000 |
| Compliance DOT/SAE/ECE | SAE J583, ECE R19 (Fog) |
| Light Technology | LED |
| Location on Vehicle | Bumper, Fog Pocket |
| Candela | 150,000 cd |
| Lumens | 866 lm |
| Lux | 150 lx |
| Beam Distance | 245 m |
| Wattage Per Light | 10W |
| Total Wattage | 20W |
| Voltage | 9V-32V |
| Amp Draw | 1.67 a |
| Beam Pattern | Fog |
| Light Temperature | 5000K |
| DOT Compliant | No |
| SAE/ECE | Yes |
| Lens Color | Clear |
| Light Color | White |
| Product Dimensions | W - 3.94" x H - 3.94" x D - 3.44" |
| Material | Magnesium Alloy |
| Finish | Black |
| UPC | 084709004972 |
| Color | Black |
| In The Box | 2 x Gravity LED™ G4 SAE/ECE Fog Light (Jeep JK 10-18) |
| Prop 65 | No |
| Size | 4" |
NOTES
-Does not fit Jeep Hard Rock Edition bumper, steel or sport bumpers
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 866 lm
-Compliance: SAE J583 & ECE-R19 Street Legal
-Lux @ 10 Meters: 150 lx
-Candela: 150,000 cd
-Beam Distance (Meters): 245m
SPECIFICATIONS (PER LIGHT)
-Wattage: 10W
-LED Source: CREE LED
-Color Temperature: 5000K
-Amp Draw: .74A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 3.94" x H - 3.94" x D - 3.44"
PARTS INCLUDED
-(2) 10W 4" Gravity G4 LED Fog lights
-Universal Adjustable Bracket

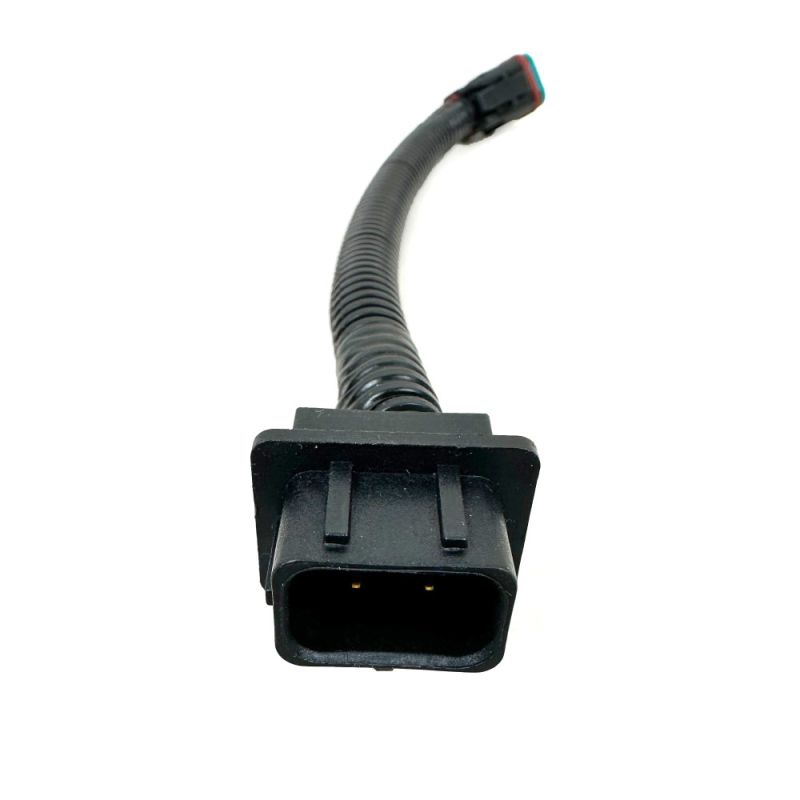

-Deluxe Wiring Harness w/ 2-Pin weatherproof connectors
-30A LED Switch w/Panel
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented GRD system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Fog Beam- Provides a low, wide-angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's mounting system bolts directly to OE 10-18 Jeep JK bumper and fog light harness.
STRENGTH & DURABILITY
Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
