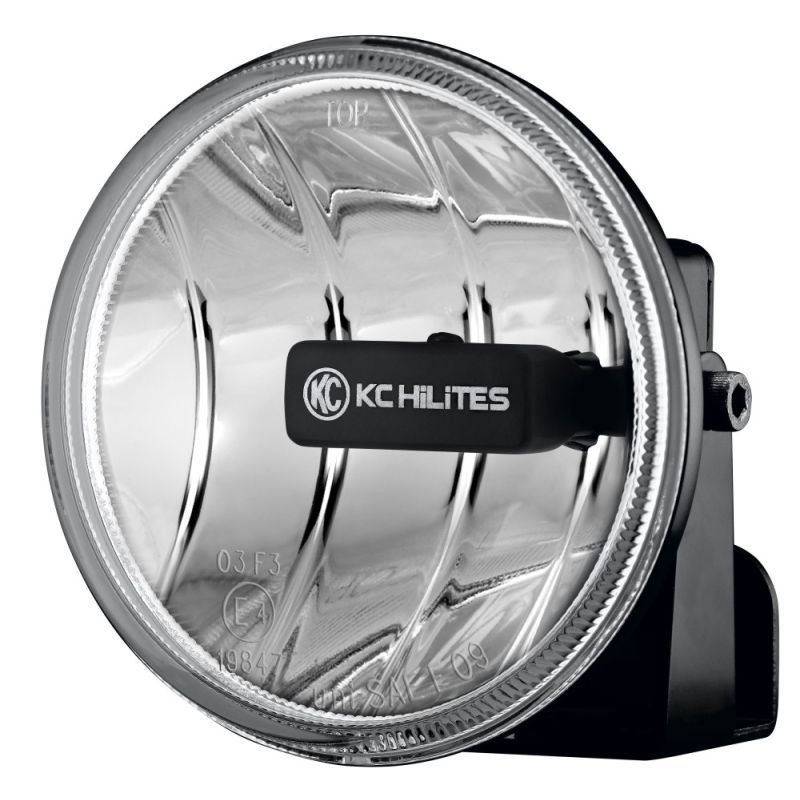

KC HILITES Gravity LED G4 Universal Fog Light Pair Pack System White
KC HILITES Gravity LED G4 Universal Fog Light Pair Pack System White
SKU: 0493
Regular price
$757.65 AUD
Regular price
Sale price
$757.65 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NOTE: This is on a 1-6 week PRE-ORDER basis, please contact us before purchase for a more accurate time frame.
KC HiLiTES 4" Gravity LED G4 Universal LED Fog Light feature powerful CREE LEDs in a street legal fog beam pattern sealed magnesium housing with polycarbonate lens. System includes (2) Lights with universal bracket for easy mounting.
FEATURES
-2 x 10W 4" Gravity LED Fog Lights
-Lightweight Magnesium Housing for Maximum Heat Dissipation
-Shatter Resistant Polycarbonate Lens
-Fog Beam Pattern (SAE & ECE Street Legal)
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 866 lm
-Compliance: SAE J583 & ECE-R19 Street Legal
-Lux @ 10 Meters: 150 lx
-Candela: 15,000 cd
-Beam Distance (Meters): 245m
SPECIFICATIONS (PER LIGHT)
-Wattage: 10W
-LED Source: CREE LED
-Color Temperature: 5000K
-Amp Draw: .74A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 3.94" x H - 3.94" x D - 3.23"
PARTS INCLUDED
-(2) 10W 4" Gravity G4 LED Fog lights
-Universal Adjustable Bracket
-Performance Wiring Harness w/ 2-Pin weatherproof connectors and Illuminated LED Light Switch
GRAVITY EXTREME OUTPUT AND EFFICIENCY
4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented Gravity Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle.
STRENGTH & DURABILITY
Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
-2 x 10W 4" Gravity LED Fog Lights
-Lightweight Magnesium Housing for Maximum Heat Dissipation
-Shatter Resistant Polycarbonate Lens
-Fog Beam Pattern (SAE & ECE Street Legal)
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 866 lm
-Compliance: SAE J583 & ECE-R19 Street Legal
-Lux @ 10 Meters: 150 lx
-Candela: 15,000 cd
-Beam Distance (Meters): 245m
SPECIFICATIONS (PER LIGHT)
-Wattage: 10W
-LED Source: CREE LED
-Color Temperature: 5000K
-Amp Draw: .74A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 3.94" x H - 3.94" x D - 3.23"
PARTS INCLUDED
-(2) 10W 4" Gravity G4 LED Fog lights
-Universal Adjustable Bracket
-Performance Wiring Harness w/ 2-Pin weatherproof connectors and Illuminated LED Light Switch
GRAVITY EXTREME OUTPUT AND EFFICIENCY
4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented Gravity Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle.
STRENGTH & DURABILITY
Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
| SKU | 0493 |
|---|---|
| Weight | 3.000000 |
| Compliance DOT/SAE/ECE | SAE J583, ECE R19 (Fog) |
| Light Technology | LED |
| Location on Vehicle | Bumper, Fog Pocket |
| Candela | 15,000 cd |
| Lumens | 866 lm |
| Lux | 150 lx |
| Beam Distance | 245 m |
| Wattage Per Light | 10W |
| Total Wattage | 20W |
| Voltage | 9V-32V |
| Amp Draw | 1.67 a |
| Beam Pattern | Fog |
| Light Temperature | 5000K |
| DOT Compliant | No |
| SAE/ECE | Yes |
| Lens Color | Clear |
| Light Color | White |
| Product Dimensions | W - 3.94" x H - 3.94" x D - 3.23" |
| Material | Magnesium Alloy |
| Finish | Black |
| UPC | 084709004934 |
| Color | Black |
| In The Box | 2 x Gravity LED G4 SAE/ECE Fog Light, 2 x Universal Mounting Bracket, Wiring Harness with Weatherproof Connectors, Hardware |
| IP rating | IP68 |
| Prop 65 | No |
| Size | 4" |
