Pro-Sport with Gravity LED G6 Pair Pack System (SPOT)
Pro-Sport with Gravity LED G6 Pair Pack System (SPOT)
KC LIGHTS
FEATURES-2x 20W Gravity® LED G6 Optical Inserts-6" Polymax Housing-Durable Polycarbonate Lens-Spot Beam, Driving Beam (SAE & ECE), or Wide-40 PatternsLIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 2,300 lm-Compliance: Driving beam meets SAE J581 & ECE-R112-Lux @ 10 Meters: Spot- 2,150 lx, Driving- 1,310 lx, Wide-40- 390 lx -Candela: Spot- 215,000 cd, Driving- 131,000 cd, Wide-40- 39,000 cd-Beam Distance (Meters): Spot- 972m, Driving- 724m, Wide-40- 395mSPECIFICATIONS(PER LIGHT)-Wattage: 20W-LED Source: CREE XPL HD LED-Amp Draw: 1.63A-Voltage: 9V-32V-IP Rating: IP68-Product Dimensions: W - 6.25" x H - 7.00" x D - 4.54"Parts Included in Pair Pack system-(2) 20W 6" Gravity® LED Pro-Sport Lights-Wiring Harness with 2-Pin weather proof connectors-(2) ABS Stone Guards-30A LED SwitchGravity® EXTREME OUTPUT AND EFFICIENCYGravity® Pro-Sports are powered by our G6 LED optical inserts to deliver 2,150 lx @ 10m using only 1.63A per light. KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.AVAILABLE BEAM PATTERN AND ADVANTAGESSpot Beam- Provides focused bright light for maximum forward distance and high speed visibility.Driving Beam- SAE & ECE street legal beams provide added peripheral visibility while reaching further than stock lights.Wide-40- Provides a wider and higher beam spread compared to our street legal fog beam patterns, while improving forward beam distance.ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISIONUniversal adjustable mounts allow for easy mounting to bolt holes, also precise vertical and horizontal aiming of lights for consistency.STRENGTH & DURABILITYUsing a durable Race-proven composite Polymax housing combined with our IP68 rated Gravity® G6 LED optical insert for an extremely strong and durable light to tolerate the harshest terrains.Available Part Numbers• 6" Pro-Sport Gravity LED Pair Pack System - KC #643 (Spot Beam)• 6" Pro-Sport Gravity LED Pair Pack System - KC #644 (Driving Beam)• 6" Pro-Sport Gravity LED Pair Pack System - KC #645 (Wide-40 Beam)
Pro-Sport with Gravity LED G6 Pair Pack System (SPOT)
Sale
![Pro-Sport with Gravity LED G6 Pair Pack System (SPOT)]()
![Pro-Sport with Gravity LED G6 Pair Pack System (SPOT)]()
![Pro-Sport with Gravity LED G6 Pair Pack System (SPOT)]()
-
1-4 DAYS DELIVERY
-
100% ORIGINAL AND QUALITY
-
24 MONTHS GUARANTEE
FEATURES
-2x 20W Gravity® LED G6 Optical Inserts
-6" Polymax Housing
-Durable Polycarbonate Lens
-Spot Beam, Driving Beam (SAE & ECE), or Wide-40 Patterns
LIGHT PERFORMANCE(PER LIGHT)
-Raw Lumens: 2,300 lm
-Compliance: Driving beam meets SAE J581 & ECE-R112
-Lux @ 10 Meters: Spot- 2,150 lx, Driving- 1,310 lx, Wide-40- 390 lx
-Candela: Spot- 215,000 cd, Driving- 131,000 cd, Wide-40- 39,000 cd
-Beam Distance (Meters): Spot- 972m, Driving- 724m, Wide-40- 395m
SPECIFICATIONS(PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 6.25" x H - 7.00" x D - 4.54"

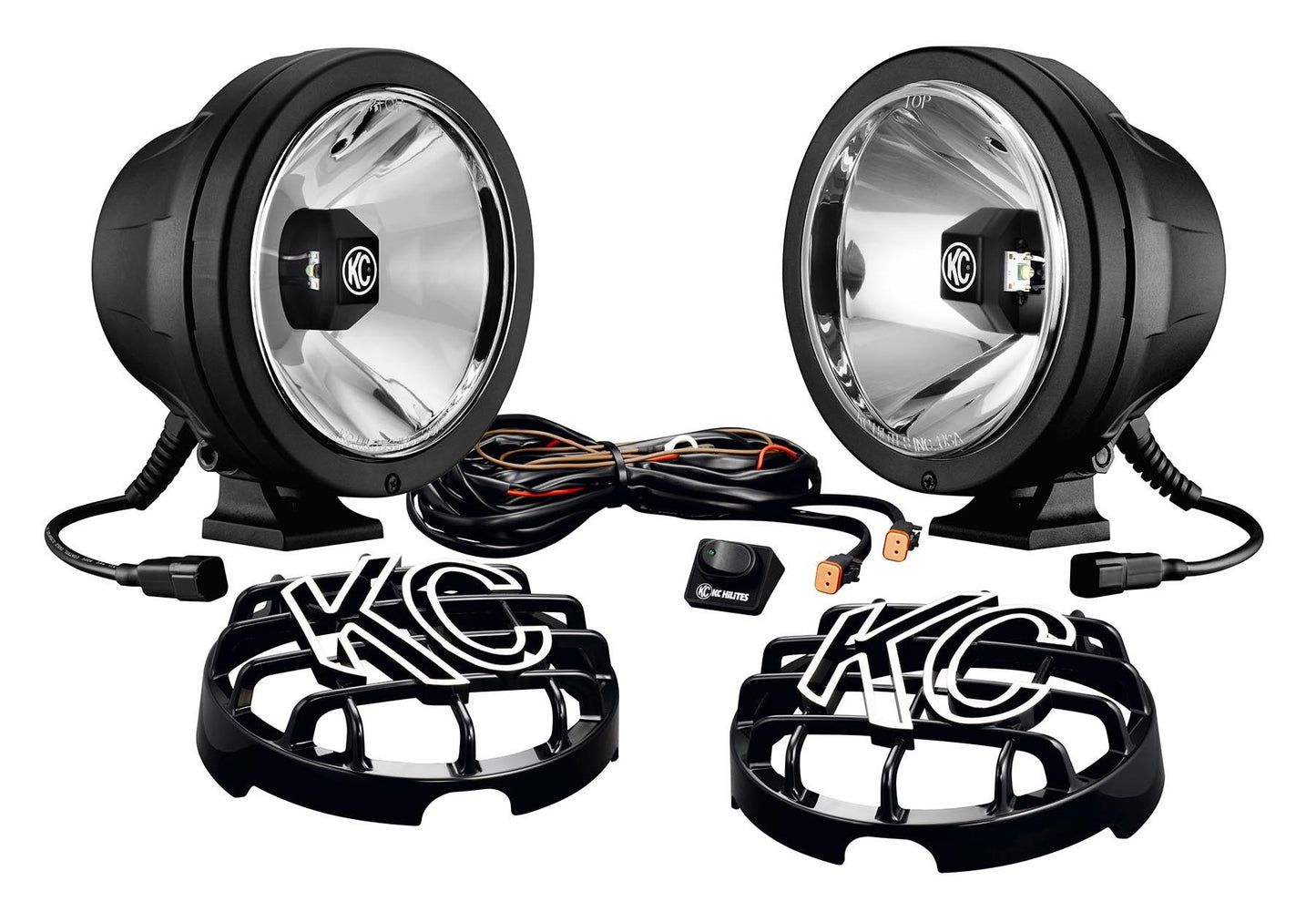

Parts Included in Pair Pack system
-(2) 20W 6" Gravity® LED Pro-Sport Lights
-Wiring Harness with 2-Pin weather proof connectors
-(2) ABS Stone Guards
-30A LED Switch
Gravity® EXTREME OUTPUT AND EFFICIENCY
Gravity® Pro-Sports are powered by our G6 LED optical inserts to deliver 2,150 lx @ 10m using only 1.63A per light. KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high speed visibility.
Driving Beam- SAE & ECE street legal beams provide added peripheral visibility while reaching further than stock lights.
Wide-40- Provides a wider and higher beam spread compared to our street legal fog beam patterns, while improving forward beam distance.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Universal adjustable mounts allow for easy mounting to bolt holes, also precise vertical and horizontal aiming of lights for consistency.
STRENGTH & DURABILITY
Using a durable Race-proven composite Polymax housing combined with our IP68 rated Gravity® G6 LED optical insert for an extremely strong and durable light to tolerate the harshest terrains.
Available Part Numbers
• 6" Pro-Sport Gravity LED Pair Pack System - KC #643 (Spot Beam)
• 6" Pro-Sport Gravity LED Pair Pack System - KC #644 (Driving Beam)
• 6" Pro-Sport Gravity LED Pair Pack System - KC #645 (Wide-40 Beam)
-2x 20W Gravity® LED G6 Optical Inserts
-6" Polymax Housing
-Durable Polycarbonate Lens
-Spot Beam, Driving Beam (SAE & ECE), or Wide-40 Patterns
LIGHT PERFORMANCE(PER LIGHT)
-Raw Lumens: 2,300 lm
-Compliance: Driving beam meets SAE J581 & ECE-R112
-Lux @ 10 Meters: Spot- 2,150 lx, Driving- 1,310 lx, Wide-40- 390 lx
-Candela: Spot- 215,000 cd, Driving- 131,000 cd, Wide-40- 39,000 cd
-Beam Distance (Meters): Spot- 972m, Driving- 724m, Wide-40- 395m
SPECIFICATIONS(PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 6.25" x H - 7.00" x D - 4.54"
Parts Included in Pair Pack system
-(2) 20W 6" Gravity® LED Pro-Sport Lights
-Wiring Harness with 2-Pin weather proof connectors
-(2) ABS Stone Guards
-30A LED Switch
Gravity® EXTREME OUTPUT AND EFFICIENCY
Gravity® Pro-Sports are powered by our G6 LED optical inserts to deliver 2,150 lx @ 10m using only 1.63A per light. KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high speed visibility.
Driving Beam- SAE & ECE street legal beams provide added peripheral visibility while reaching further than stock lights.
Wide-40- Provides a wider and higher beam spread compared to our street legal fog beam patterns, while improving forward beam distance.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Universal adjustable mounts allow for easy mounting to bolt holes, also precise vertical and horizontal aiming of lights for consistency.
STRENGTH & DURABILITY
Using a durable Race-proven composite Polymax housing combined with our IP68 rated Gravity® G6 LED optical insert for an extremely strong and durable light to tolerate the harshest terrains.
Available Part Numbers
• 6" Pro-Sport Gravity LED Pair Pack System - KC #643 (Spot Beam)
• 6" Pro-Sport Gravity LED Pair Pack System - KC #644 (Driving Beam)
• 6" Pro-Sport Gravity LED Pair Pack System - KC #645 (Wide-40 Beam)
FEATURES
-2x 20W Gravity® LED G6 Optical Inserts
-6" Polymax Housing
-Durable Polycarbonate Lens
-Spot Beam, Driving Beam (SAE & ECE), or Wide-40 Patterns
LIGHT PERFORMANCE(PER LIGHT)
-Raw Lumens: 2,300 lm
-Compliance: Driving beam meets SAE J581 & ECE-R112
-Lux @ 10 Meters: Spot- 2,150 lx, Driving- 1,310 lx, Wide-40- 390 lx
-Candela: Spot- 215,000 cd, Driving- 131,000 cd, Wide-40- 39,000 cd
-Beam Distance (Meters): Spot- 972m, Driving- 724m, Wide-40- 395m
SPECIFICATIONS(PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 6.25" x H - 7.00" x D - 4.54"
Parts Included in Pair Pack system
-(2) 20W 6" Gravity® LED Pro-Sport Lights
-Wiring Harness with 2-Pin weather proof connectors
-(2) ABS Stone Guards
-30A LED Switch
Gravity® EXTREME OUTPUT AND EFFICIENCY
Gravity® Pro-Sports are powered by our G6 LED optical inserts to deliver 2,150 lx @ 10m using only 1.63A per light. KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high speed visibility.
Driving Beam- SAE & ECE street legal beams provide added peripheral visibility while reaching further than stock lights.
Wide-40- Provides a wider and higher beam spread compared to our street legal fog beam patterns, while improving forward beam distance.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Universal adjustable mounts allow for easy mounting to bolt holes, also precise vertical and horizontal aiming of lights for consistency.
STRENGTH & DURABILITY
Using a durable Race-proven composite Polymax housing combined with our IP68 rated Gravity® G6 LED optical insert for an extremely strong and durable light to tolerate the harshest terrains.
Available Part Numbers
• 6" Pro-Sport Gravity LED Pair Pack System - KC #643 (Spot Beam)
• 6" Pro-Sport Gravity LED Pair Pack System - KC #644 (Driving Beam)
• 6" Pro-Sport Gravity LED Pair Pack System - KC #645 (Wide-40 Beam)
-2x 20W Gravity® LED G6 Optical Inserts
-6" Polymax Housing
-Durable Polycarbonate Lens
-Spot Beam, Driving Beam (SAE & ECE), or Wide-40 Patterns
LIGHT PERFORMANCE(PER LIGHT)
-Raw Lumens: 2,300 lm
-Compliance: Driving beam meets SAE J581 & ECE-R112
-Lux @ 10 Meters: Spot- 2,150 lx, Driving- 1,310 lx, Wide-40- 390 lx
-Candela: Spot- 215,000 cd, Driving- 131,000 cd, Wide-40- 39,000 cd
-Beam Distance (Meters): Spot- 972m, Driving- 724m, Wide-40- 395m
SPECIFICATIONS(PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 6.25" x H - 7.00" x D - 4.54"
Parts Included in Pair Pack system
-(2) 20W 6" Gravity® LED Pro-Sport Lights
-Wiring Harness with 2-Pin weather proof connectors
-(2) ABS Stone Guards
-30A LED Switch
Gravity® EXTREME OUTPUT AND EFFICIENCY
Gravity® Pro-Sports are powered by our G6 LED optical inserts to deliver 2,150 lx @ 10m using only 1.63A per light. KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high speed visibility.
Driving Beam- SAE & ECE street legal beams provide added peripheral visibility while reaching further than stock lights.
Wide-40- Provides a wider and higher beam spread compared to our street legal fog beam patterns, while improving forward beam distance.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Universal adjustable mounts allow for easy mounting to bolt holes, also precise vertical and horizontal aiming of lights for consistency.
STRENGTH & DURABILITY
Using a durable Race-proven composite Polymax housing combined with our IP68 rated Gravity® G6 LED optical insert for an extremely strong and durable light to tolerate the harshest terrains.
Available Part Numbers
• 6" Pro-Sport Gravity LED Pair Pack System - KC #643 (Spot Beam)
• 6" Pro-Sport Gravity LED Pair Pack System - KC #644 (Driving Beam)
• 6" Pro-Sport Gravity LED Pair Pack System - KC #645 (Wide-40 Beam)
