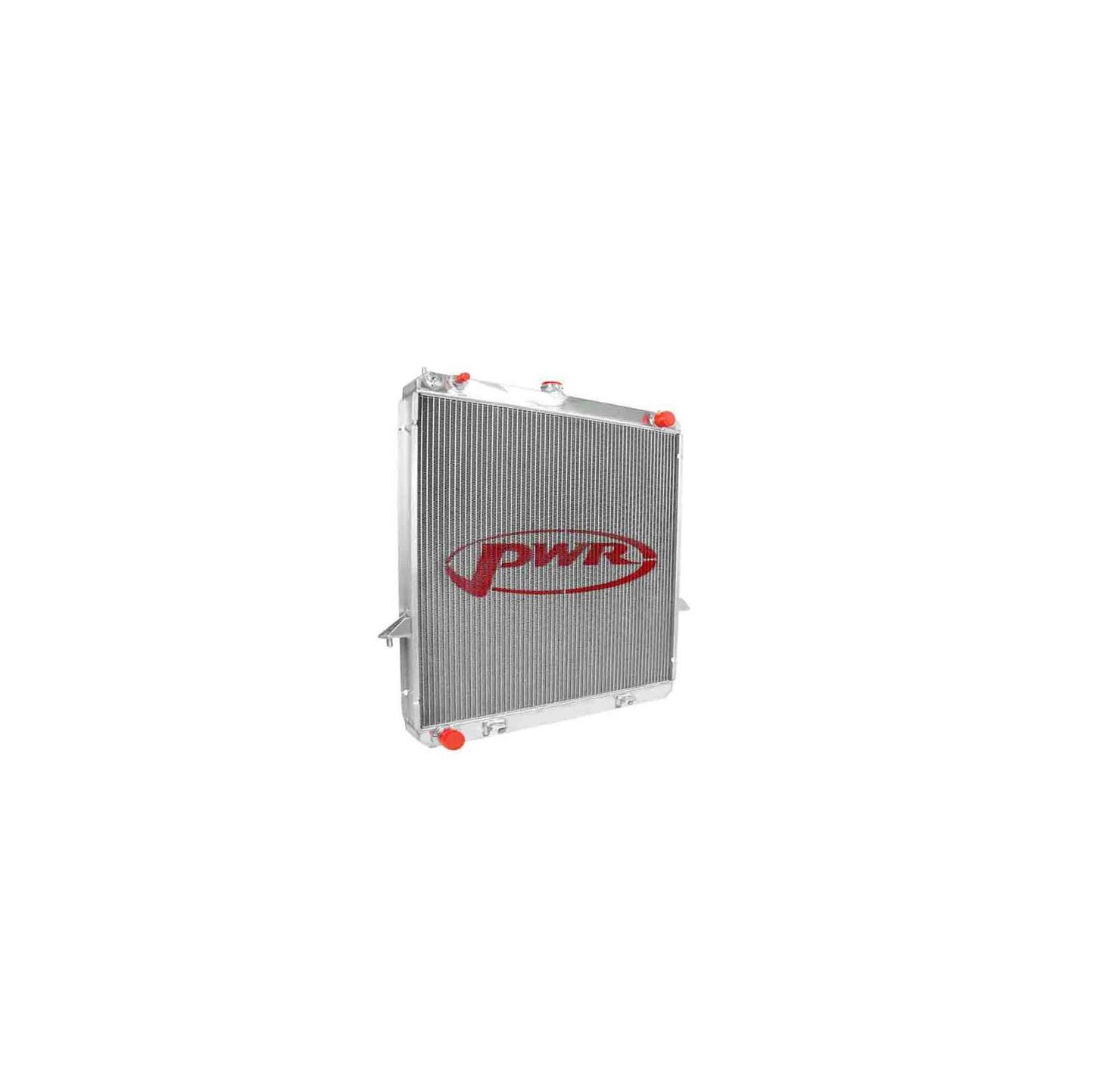

PWR 55mm Radiator TO SUIT Nissan Patrol GU3 Y61 4.2TD (2003-2016)

Nissan Patrol GU3 Y61 4.2TD (2003-2016) 55mm Radiator

PRODUCT DETAILS

• Up to 30% more efficient than Standard OEM using the latest tube & fin technology

• Heavy-duty core combinations using 42, 55 & 68mm cores

• Revolutionary fin pitch from 10-22FPI and louver angles

• Thicker wall and high tensile Sheetmetal to handle the harshest of corrugations
• Use of subheader plates & expansion joints to further strengthen the core
• World-class TIG welding by our passionate fabricators

• State-of-the-art controlled atmosphere brazing process

• All items CAD designed to meet ISO9001 International standards for repeatability
• Proven performance backed by comprehensive wind tunnel testing

• Pressure tested and guaranteed
• 1 Year-manufactured warranty
• 100% Australian made

When it comes to keeping cool in the hot Australian climate, PWR’s range of 4WD High-Performance Radiators will handle the extreme conditions. Whether it’s towing the caravan, camper trailer or driving through the soft sands in the top end, you can travel with ease. The PWR range is designed to fit in the original mounting position requiring no modification and allow the original plastic shroud and brackets to bolt directly to the unit.

SPECIFICATIONS

• Aluminium

• Polished Sheet Metal Tanks

• 719 x 610 x 70mm
• Rolled Dimple Tube and Fin

• Factory Size Outlets

• Radiator Cap Sold Separately


WHAT'S INCLUDED

• 1 x Rolled Dimple Tube and Fin Radiator


COMPATIBILITY

• NISSAN Patrol Y61 GU3 4.2TD Diesel Engine (2003 - 2016) - Due to a thicker design radiator, trimming of the plastic shroud is required around the bottom corners to allow the radiator to seat properly in lower pins. Trimming of the shroud is also required around the top hose area.
