Runva

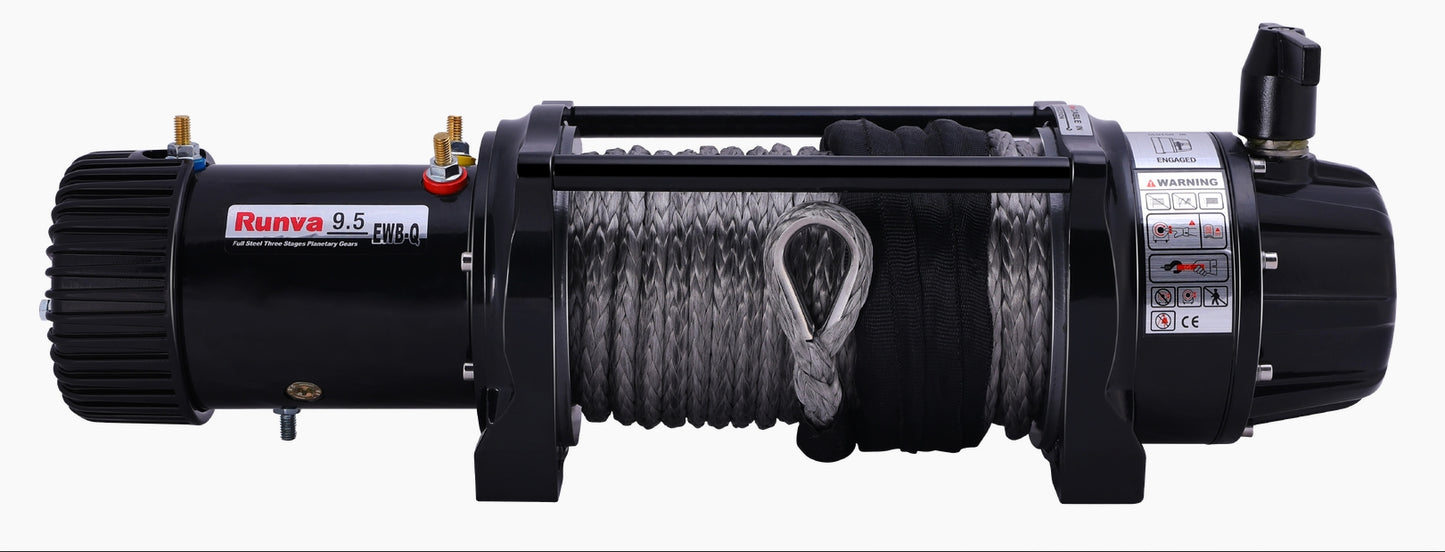

Runva winch EWB9500-Q PREMIUM 24V with Synthetic Rope
Runva winch EWB9500-Q PREMIUM 24V with Synthetic Rope
SKU: EWB9500Q24VD
Regular price
$1,030.75 AUD
Regular price
$1,085.00 AUD
Sale price
$1,030.75 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 9,500LB LINE PULL CAPACITY
- LOW GEAR RATIO - FAST LINE SPEED
- IP67 INGRESS PROTECTED
- RATCHET BRAKE IN GEARBOX
- AVAILABLE IN 12V AND 24V
- AIR FREESPOOL CLUTCH AVAILABLE
RATED LINE PULL9,500LB (4,309KG)
MOTOR(12V) 5.4KW/7.2HP; (24V) 5.3KW/7.1HP
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
GEAR RATIO108:1
CLUTCH TYPESTAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPESYNTHETIC ROPE
CABLE SIZE10MM X 25M
DRUM SIZE63MM X 216MM
MOUNTING BOLT PATTERN254MM X 114.3MM
OVERALL DIMENSIONS612MM X 160MM X 200MM
REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHBLACK POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
sku EWB9500Q24VD
Shipping Weight 39.00kg
Shipping Width 0.330m
Shipping Height 0.330m
Shipping Length 0.635m
**Winch deliveries may incur additional tailgate service fees if a business or commercial depot address is not provided. Additional freight charges may also apply for deliveries to rural or remote locations outside metropolitan areas. To help avoid these extra fees, we recommend providing a business or commercial depot delivery address or contacting us for a freight quote before purchasing.
