RUNVA

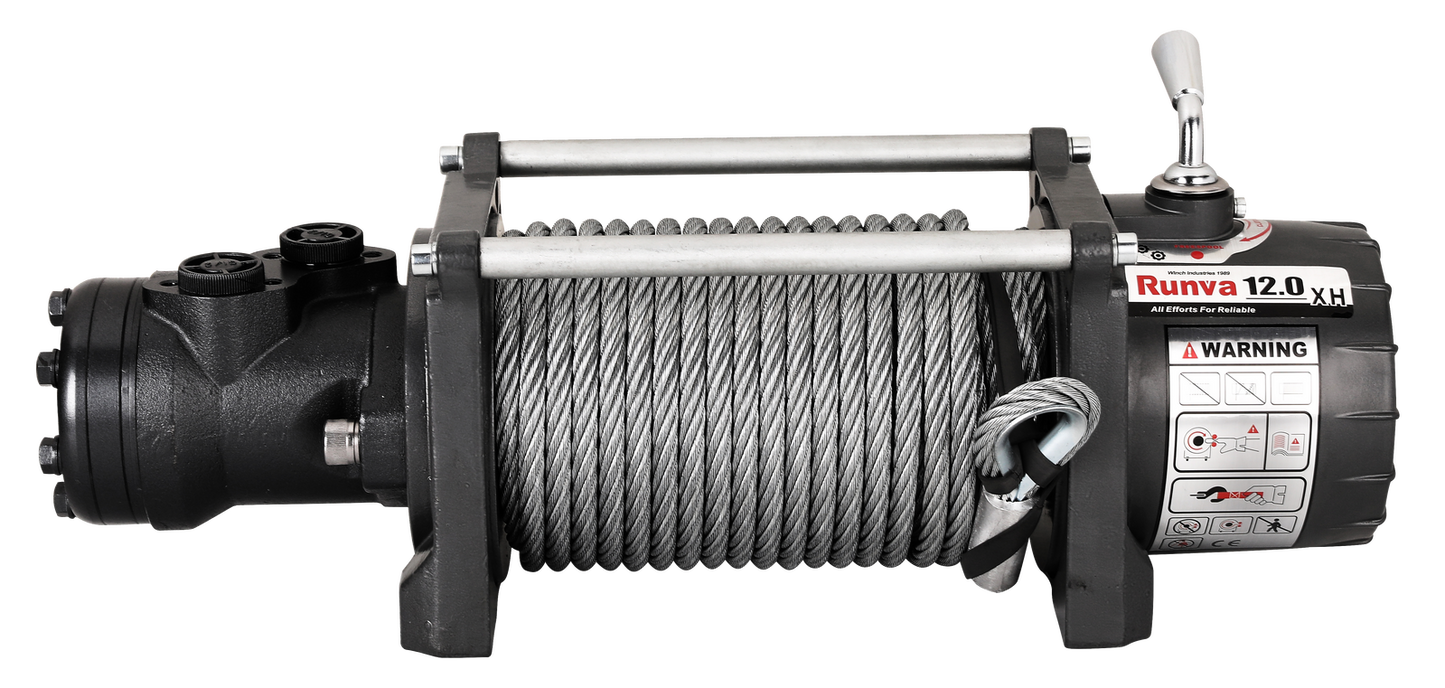

RUNVA WINCH HWX12000 Hydraulic Winch with Steel Cable

RUNVA WINCH HWX12000 Hydraulic Winch with Steel Cable

SKU: HWX1200012VS

Regular price $1,377.50 AUD
Regular price $1,450.00 AUD Sale price $1,377.50 AUD
Sale Sold out
Shipping calculated at checkout.
  • 12,000LB LINE PULL CAPACITY
  • IP67 INGRESS PROTECTED
  • FULL HYDRAULIC WINCH
  • PATENTED TWO STAGE PLANETARY GEARBOX
  • INCLUDES VALVE BLOCK + 12V DIRECTIONAL CONTROL VALVE AND REMOTE
  • SYNTHETIC ROPE OPTION AVAILABLE
RATED LINE PULL12,000lb (5,897kg)
HYDRAULIC MOTOR DISPLACEMENT65ML/R
OIL FLOW15-45L/MIN
PRESSURE11MPA
GEAR TRAINFULL STEEL TWO STAGE PLANETARY
GEAR RATIO28:1
CLUTCH TYPESLIDING RING GEAR
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC LOAD HOLDING SCREW CONE
CABLE TYPESTEEL CABLE
CABLE SIZE10.2MM X 25.5M
DRUM SIZE63MM x 223MM
MOUNTING BOLT PATTERN254MM x 114.3MM
OVERALL DIMENSIONS550MM x 174MM x 217MM
FINISHGREY POWDER COAT
WARRANTYLIMITED 5 YEAR MOTOR AND LIFETIME MECHANICAL WARRANTY
sku HWX1200012VS
Shipping Weight 50.00kg
Shipping Width 0.330m
Shipping Height 0.330m
Shipping Length 0.635m
