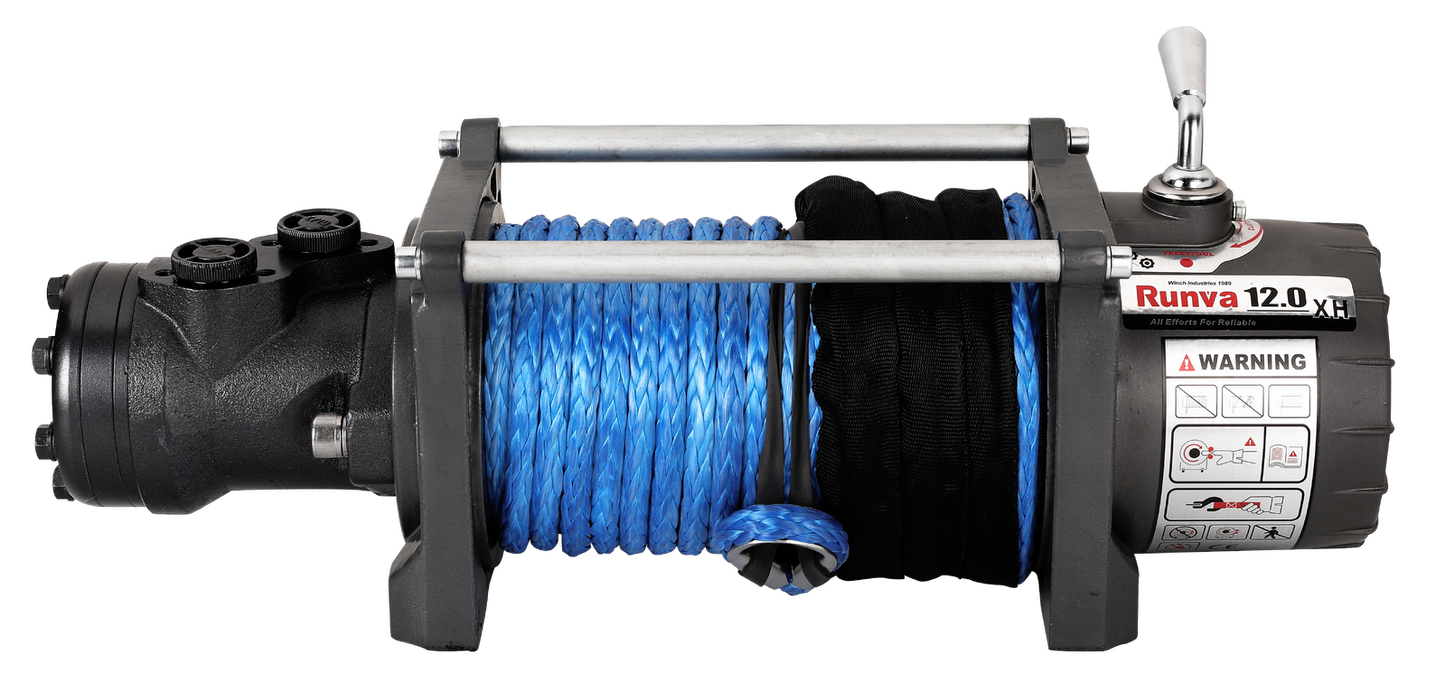

RUNVA WINCH HWX12000 Hydraulic Winch with Synthetic Rope

RUNVA WINCH HWX12000 Hydraulic Winch with Synthetic Rope

SKU: HWX1200012VD

Regular price $1,531.40 AUD
Regular price $1,612.00 AUD Sale price $1,531.40 AUD
Sale Sold out
Shipping calculated at checkout.
RATED LINE PULL12,000lb (5,897kg)
HYDRAULIC MOTOR DISPLACEMENT65ML/R
OIL FLOW15-45L/MIN
PRESSURE11MPA
GEAR TRAINFULL STEEL TWO STAGE PLANETARY
GEAR RATIO28:1
CLUTCH TYPESLIDING RING GEAR
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC LOAD HOLDING SCREW CONE
CABLE TYPESYNTHETIC ROPE
CABLE SIZE10MM X 25M
DRUM SIZE63MM x 223MM
MOUNTING BOLT PATTERN254MM x 114.3MM
OVERALL DIMENSIONS550MM x 174MM x 217MM
FINISHGREY POWDER COAT
WARRANTYLIMITED 5 YEAR MOTOR AND LIFETIME MECHANICAL WARRANTY
sku HWX1200012VD
Shipping Weight 42.00kg
Shipping Width 0.330m
Shipping Height 0.330m
Shipping Length 0.635m
