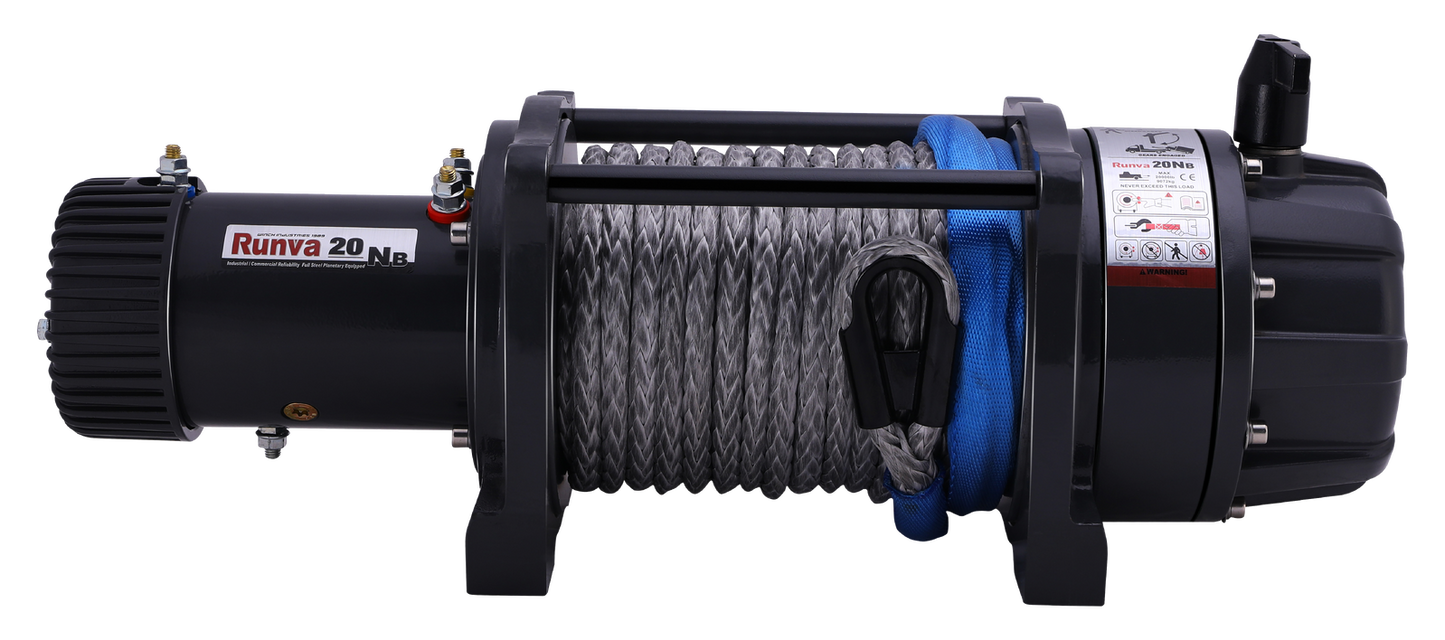

RUNVA WINCH EWB20000 Premium Winch 24V with Synthetic Rope
RUNVA WINCH EWB20000 Premium Winch 24V with Synthetic Rope
SKU: EWB2000024VD
Regular price
$2,180.25 AUD
Regular price
$2,295.00 AUD
Sale price
$2,180.25 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
RATED LINE PULL20,000LB (9,072KG)
MOTOR(12V) 5.5KW/7.4HP; (24V) 6.1KW/8.2HP
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
GEAR RATIO370:1
CLUTCH TYPESTAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPESYNTHETIC ROPE
CABLE SIZE12MM X 25M
DRUM SIZE88MM X 217MM
MOUNTING BOLT PATTERN254MM X 114.3MM; 254MM X 165.1MM
(8X M12 BOLTS)
(8X M12 BOLTS)
OVERALL DIMENSIONS636MM X 214MM X 252MM
REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHGREY POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY (18 MONTH COMMERCIAL USE WARRANTY)
sku EWB2000024VD
Shipping Weight 63.00kg
Shipping Width 0.360m
Shipping Height 0.330m
Shipping Length 0.720m
