SAAS Oil Filter Sandwich Plate Kit SGAP6 M24 x 1.5 to 3/4 x 16 (SGAP6-2434)
SAAS Oil Filter Sandwich Plate Kit SGAP6 M24 x 1.5 to 3/4 x 16 (SGAP6-2434)
SKU: SGAP6-2434
Couldn't load pickup availability

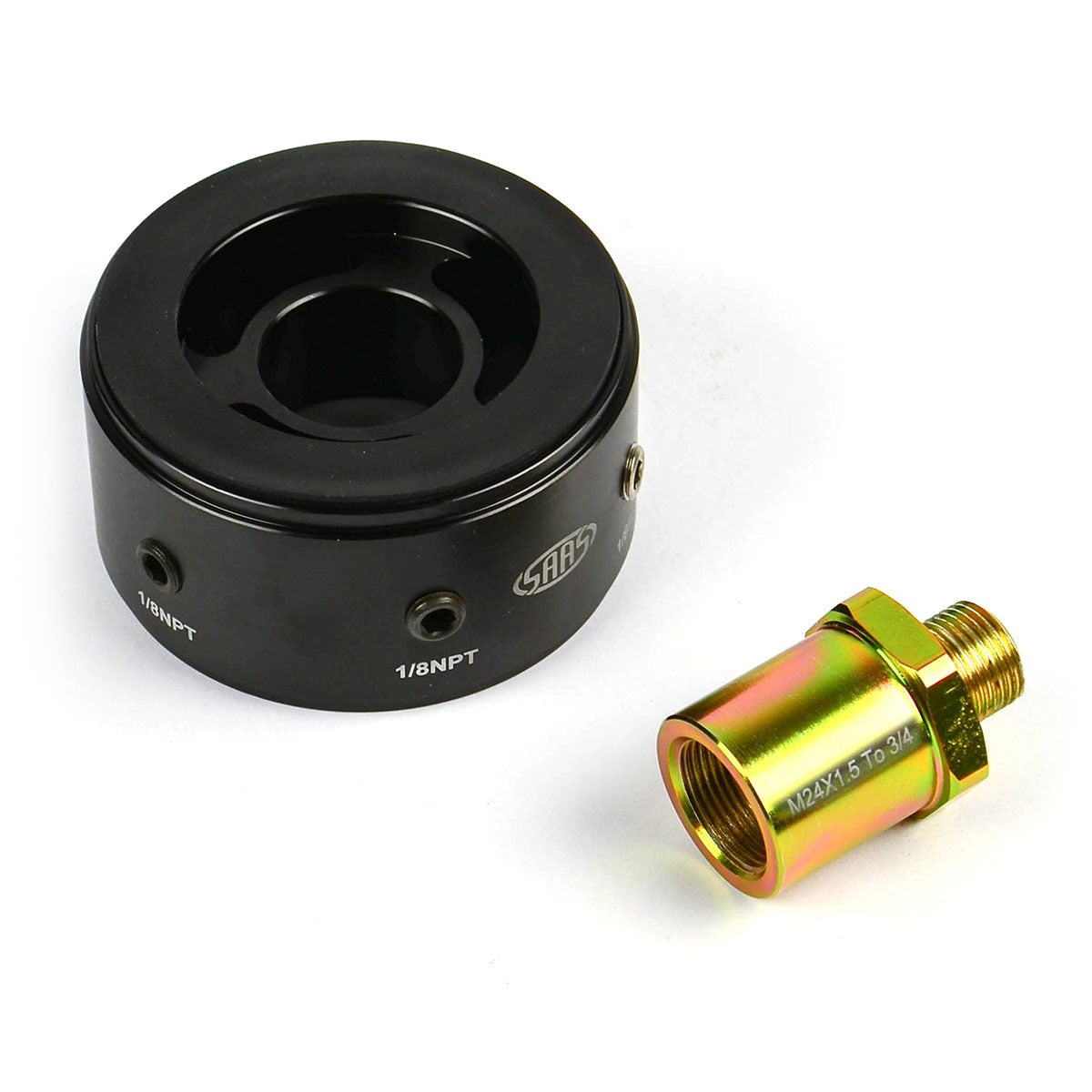

Note: Kit includes sandwich plate and filter adaptor bolt

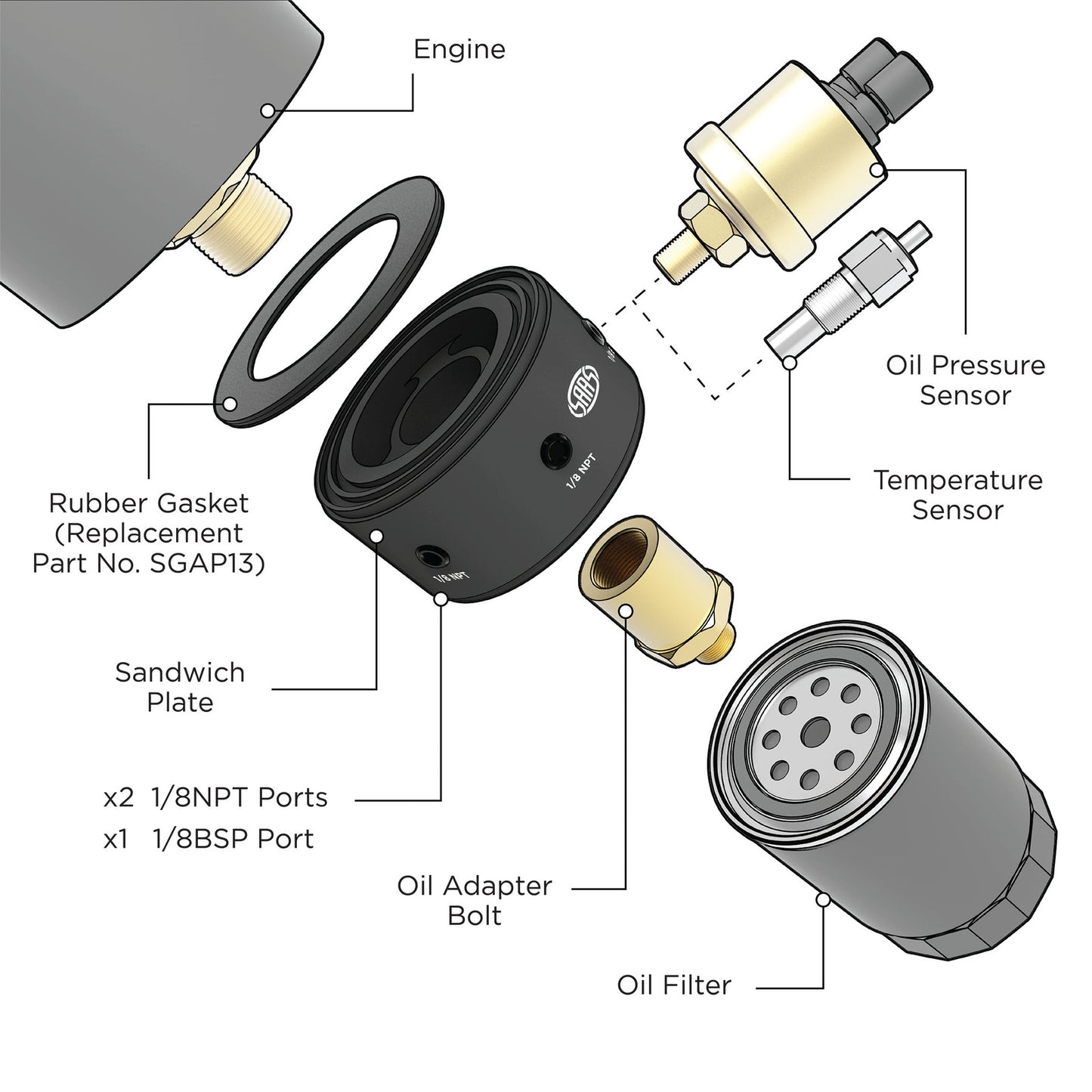

Our new for '22 Oil Filter Sandwich Plate conversion kit provides a solution for those who wish to convert their conventional Z334 style M24x1.5 thread oil filters for the generally more available Z9 style 3/4-16 thread oil filters. The plate still provides the ability to add additional senders/switches for their aftermarket gauges. The SGAP6-2434 converts Toyota full flow oil filters with a M24x1.5 thread to a single pass Z9 style filter with 3/4-16 thread and comes with 2 x 1/8" NPT and 1 x 1/8 BSP take off ports for senders/switches.
Predominantly for Toyota diesel engines using M24x1.5 filters (as an example, the Z334 style oil filter), the adaptor plate measures 90mm in diameter and is 47mm in depth.
Be advised that single pass oil filters will not provide the same degree of filtration as a conventional dual pass.
Features:
- Suits popular Toyota diesel engines using M24 x 1.5 full flow filters (see important fitting notes)
- Converst to the widely available Z9 style 3/4-16 thread oil filter
- Machined from T6061 billet alloy
- 90mm diameter and 47mm thick sandwich plate
- Custom filter adaptor bolt
- 2 x 1/8-27 NPT and 1 x 1/8 BSP accessory ports (blanking plugs supplied)
- Allows fitment of pressure and/or temperature senders and switches
- Dual channel sealing gasket (replacement spares available)
- 14mm oil filter seating face
Fitting Notes:
- Check your overall clearance from the end of your installed oil filter to ensure you can remove/service the oil filter
- If you have >= 75mm clearance from the end of your filter, SAAS recommends you use our SGAP6-2434 or SGAP6-2415 filter adaptor
- If you have < 75mm clearance, you may be able to use our SGAP5-2415, however you need to check the overall length of your OE oil pump to filter bolt. This will require removal of your oil filter
