SAAS Oil Filter Sandwich Plate Kit (short) Toyota SGAP5 M24 x 1.5 (SGAP5-2415)

SGAP5-2415 Oil Filter Sandwich Plate Kit (short) suit Toyota M24 x 1.5

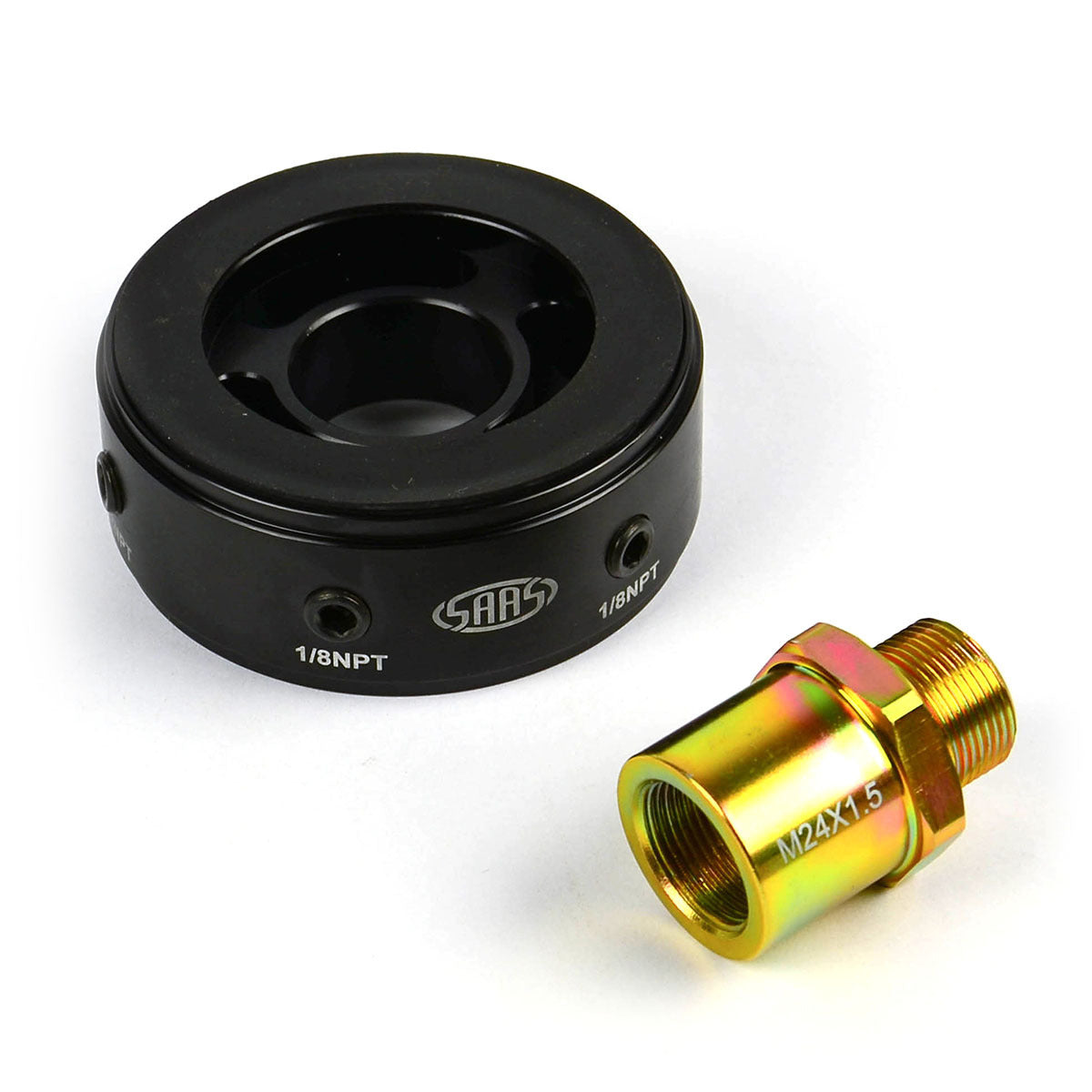

Note: Kit includes sandwich plate and filter adaptor bolt

PLEASE ENSURE YOU READ FITTING NOTES

Our new for '22 Oil Filter Sandwich Plate kits help provide a solution to for those who need to add in additional senders/switches for their aftermarket gauges and don't have the room to use a conventional brass tee.

Predominantly for Toyota engines using M24x1.5 filters (as an example, the Z334 style oil filter), the SGAP5-2415 comes with 3 x 1/8" NPT take off ports for senders/switches and measures 90mm in diameter and is 35mm in depth. The SGAP5-2416 is a possible alternative where the longer SGAP6-2415 cannot be used due to filter clearance issues. If you do not have any filter clearance issues, we recommend you use the SGAP6-2415 filter adaptor kit. Please see fitting notes below.

Features:

• Suits popular Toyota diesel engines using M24 x 1.5 filters where filter clearance may be an issue (see important fitting notes)
• Machined from T6061 billet alloy
• 90mm diameter and 35mm thick sanwich plate
• 3 x 1/8-27 NPT accessory ports (blanking plugs supplied)

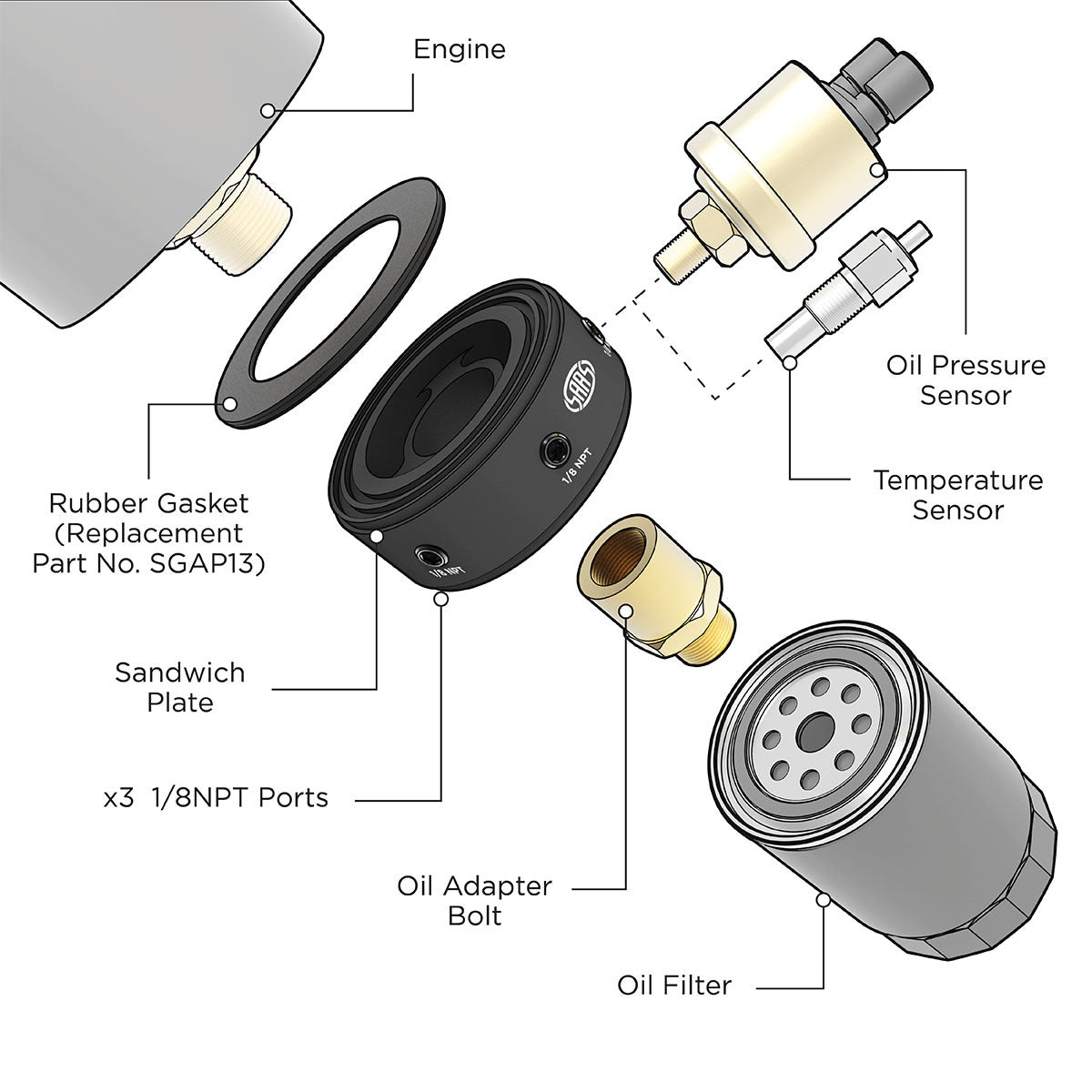

• Allows fitment of pressure and/or temperature senders and switches
• Dual channel sealing gasket (replacement spares available)
• 14mm oil filter seating face

Fitting Notes:

• Check your overall clearance from the end of your installed oil filter
  • If you have >= 75mm clearance from the end of your filter, SAAS recommends you use the SGAP6-2415 filter adaptor
  • If you have < 75mm clearance, you then need to check the overall length of your OE oil pump to filter bolt. This will require removal of your oil filter.
