SAAS Oil Pressure Gauge

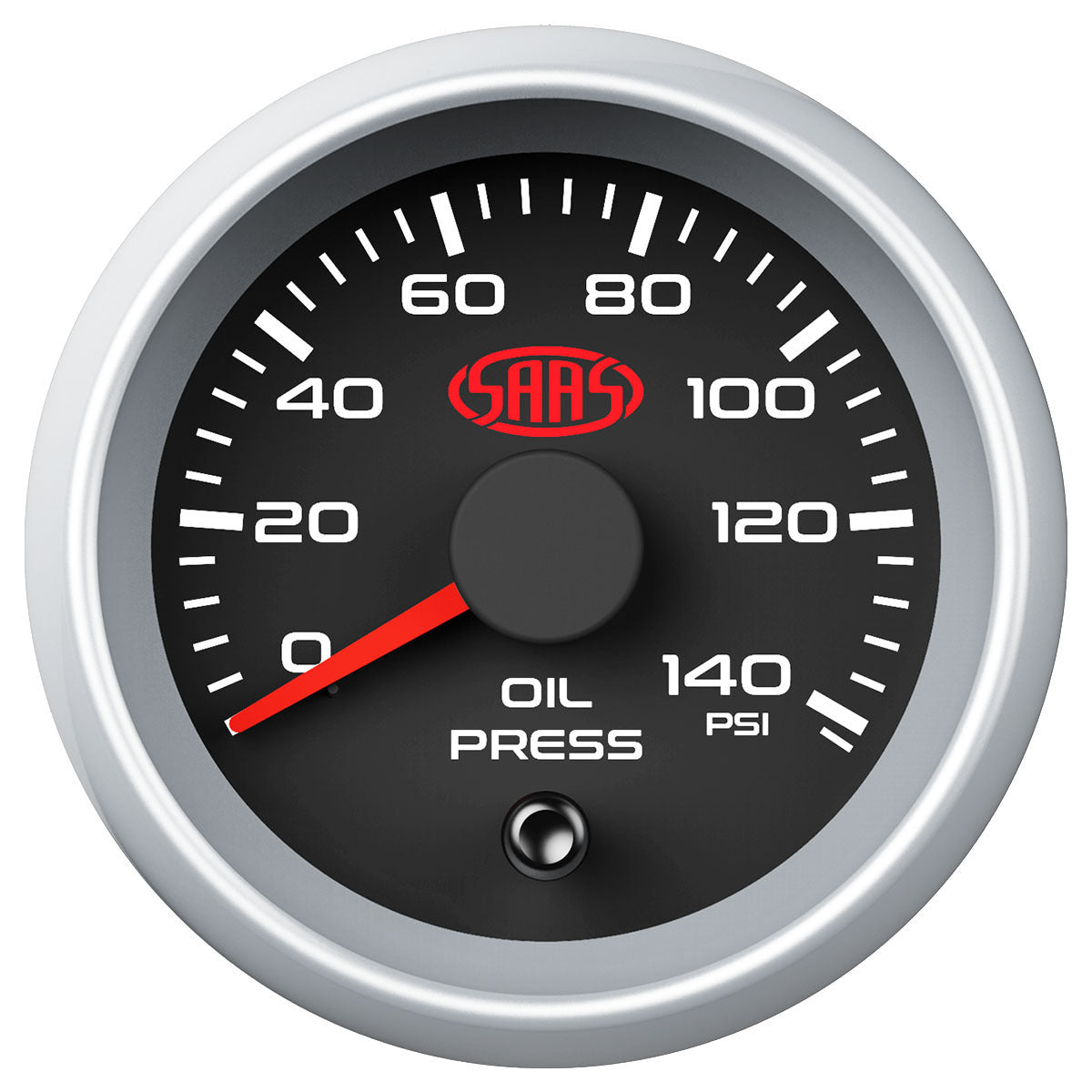

SGOP52BS2 Oil Pressure Gauge 0-140psi 52mm Black Muscle Series 2

Engine oil pressure is one your engine's most vital signs and monitoring for any variation is critical. Keep an eye on pressure movement and make a interior design statement at the same time with our Muscle series of gauges.

Features:

• 0-140 PSI Pressure Range

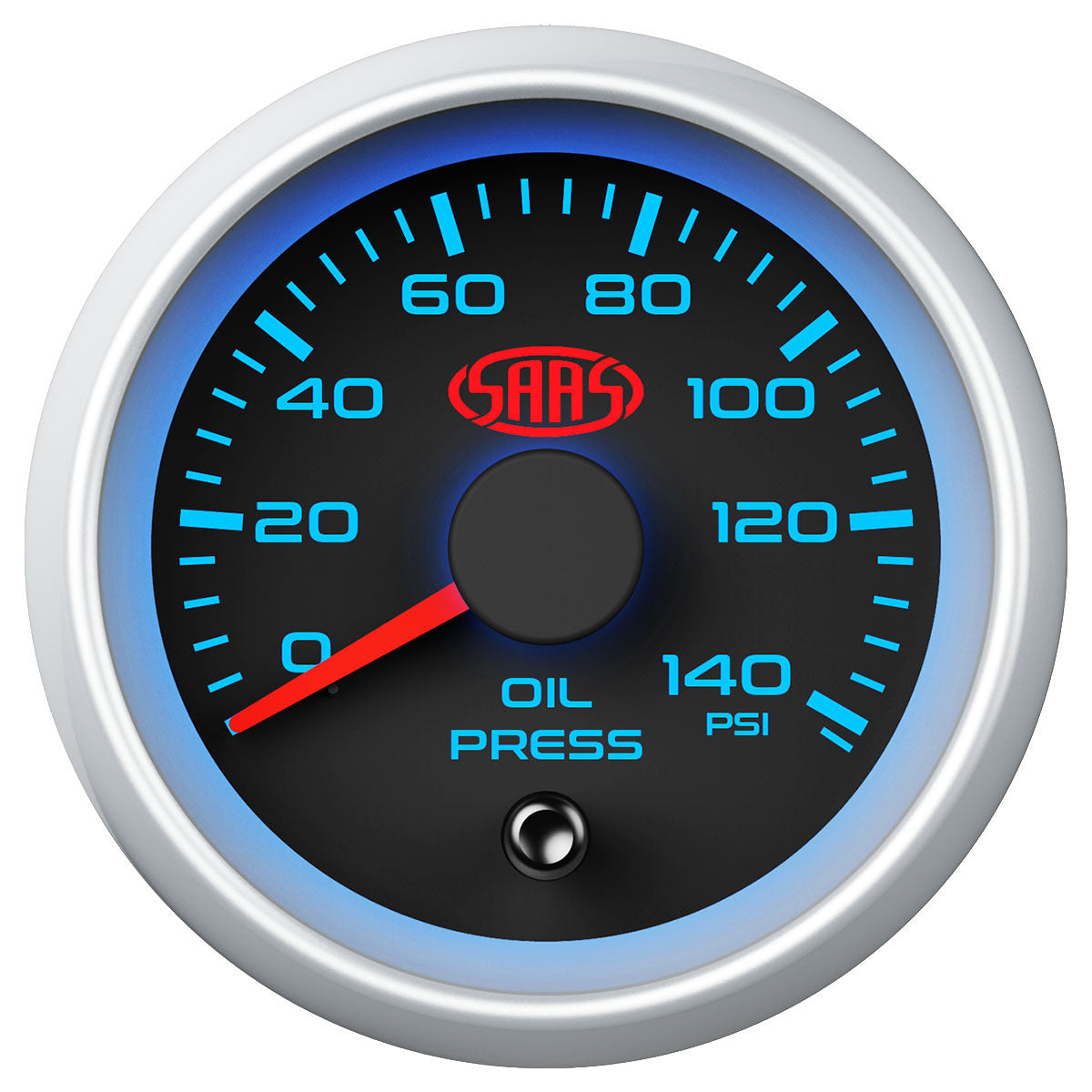

• LED lighting with 4 colour options
• Micro switch for backlight changes
• Replacement spares available (see below)

What's Included :

• Oil Pressure Gauge
• Oil Pressure Sender
• SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
• Wiring Loom
• Mounting Bracket and fittings

Fitment Notes:

The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. Alternatively, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories.

Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
