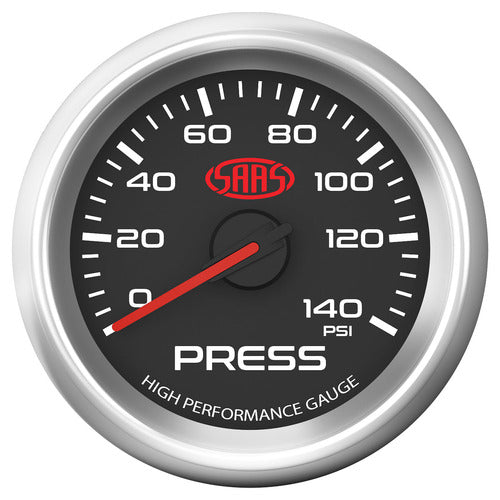

SAAS Oil Press Gauge 0-140psi 52mm Black Muscle Series 3 (SG32230)

Engine oil pressure is one your engine's most vital signs and monitoring for any variation is critical. Keep an eye on pressure movement and make a interior design statement at the same time with our Muscle series 3 of gauges.

The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. Alternatively, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings

• Gauge Diameter: 52mm/2"
• Gauge Operating Range: 0-140 PSI
• Polished Bezel Surround
• Rear set colour change button

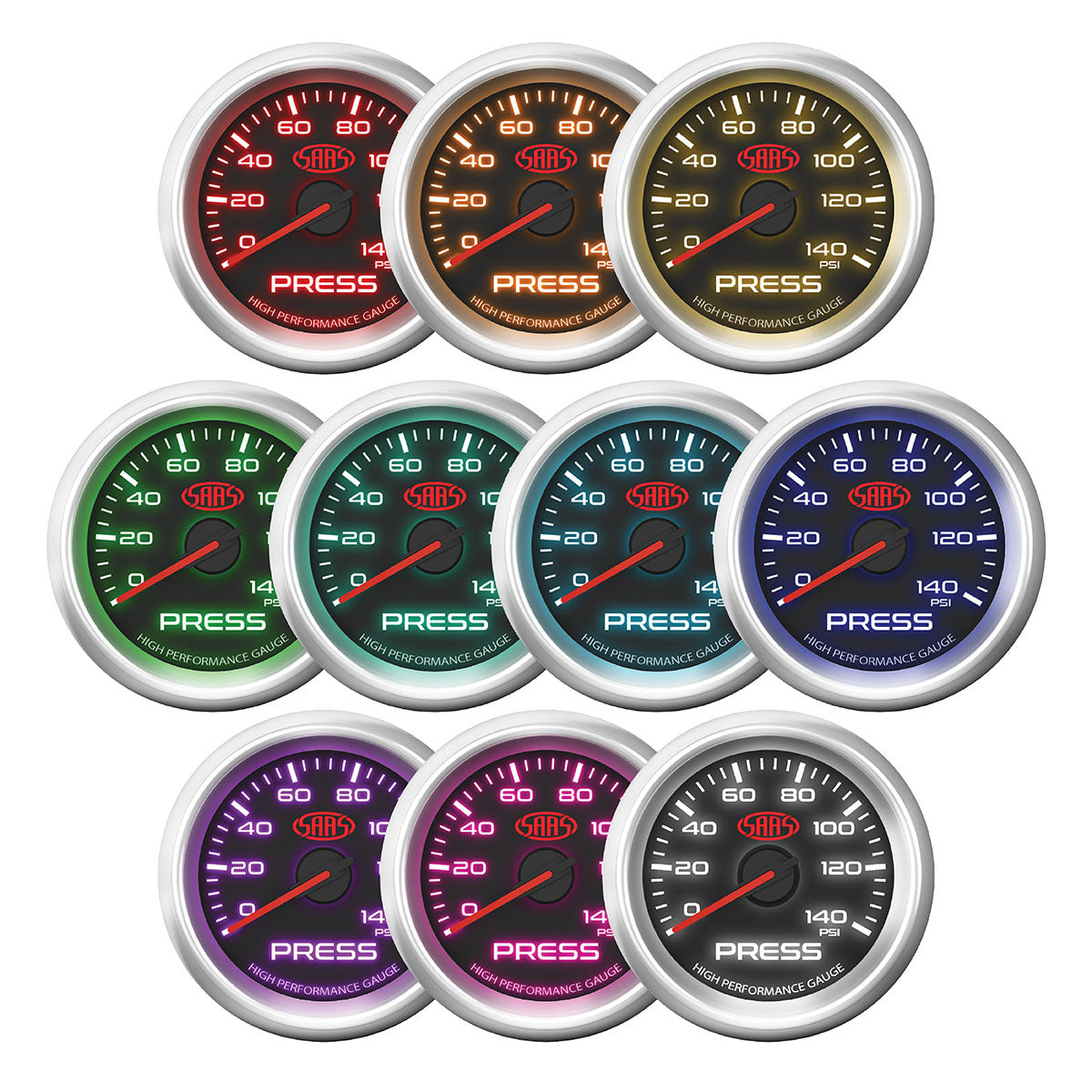

• 10 Colour Backlight options: Red, Red amber, Orange, Green, Aqua, Cyan, Blue, Purple, Pink & White
• Includes all mounting hardware, bracket and sender
• 5 levels day / night dimming function
• User pre-set warning functions
• Advanced stepper motor technology
