SAAS Water Temp Gauge 40°-120° 52mm Black Muscle Series 3 (SG32220)
SAAS Water Temp Gauge 40°-120° 52mm Black Muscle Series 3 (SG32220)
SKU: SG32220
Couldn't load pickup availability

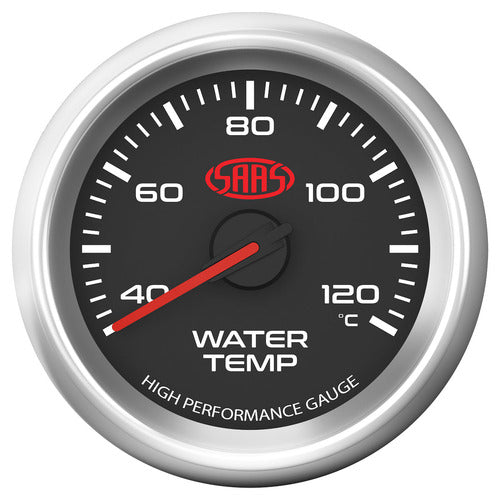

SG32220 Water Temp Gauge 40°-120° 52mm Black Muscle Series 3
This water temperature gauge is ideal for checking on your engine cooling system and helps keep on eye out for any potential issues.
The sender can be mounted directly into an available water temp port (for example, inlet manifold), piggy backed off the OE sender/switch using a brass T-Adaptor or most commonly, into a top radiator hose inline t-piece. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
Features
- Gauge Diameter: 52mm/2"
- Gauge Operating Range: 40°-120°
- Polished Bezel Surround
- Rear set colour change button

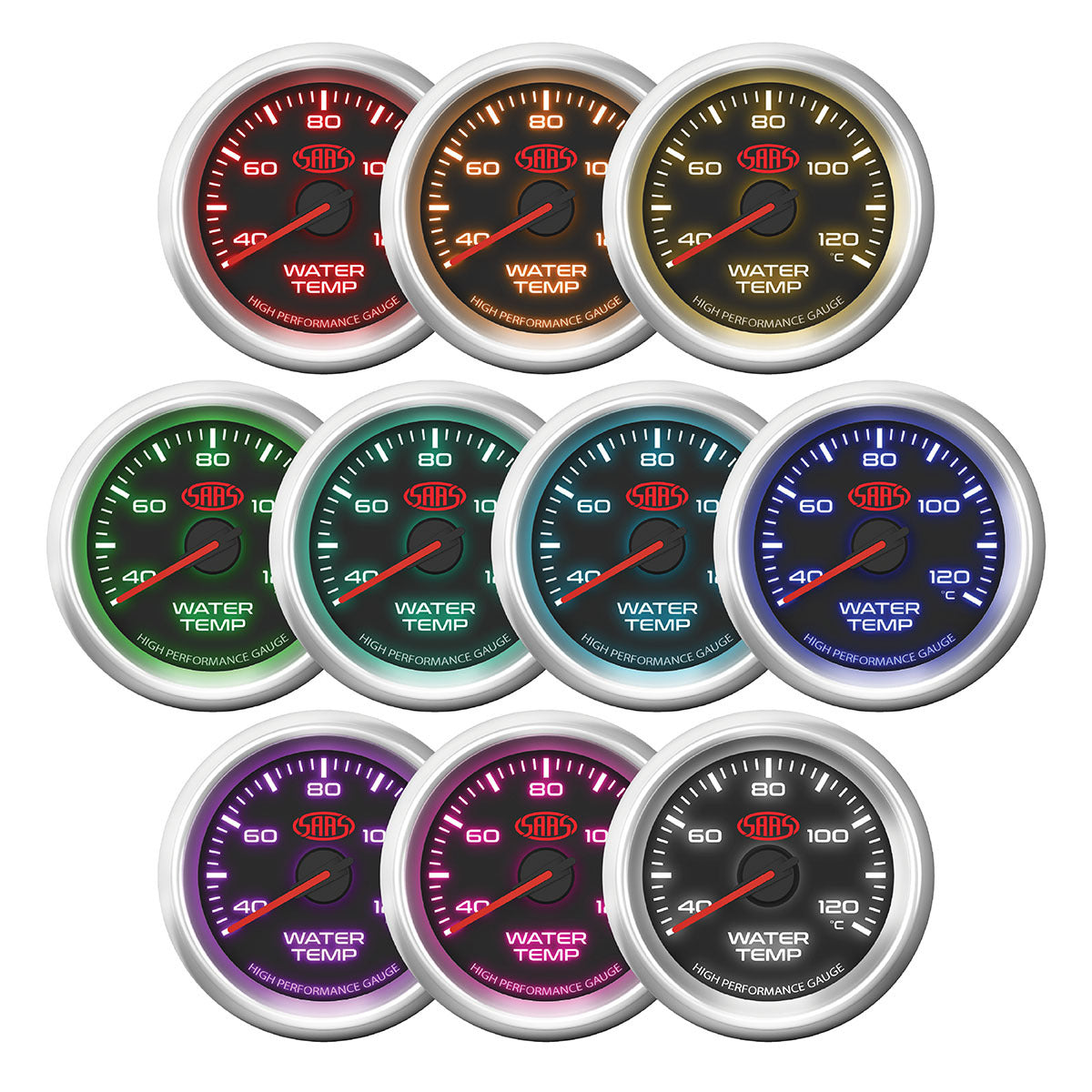

- 10 Colour Backlight options: Red, Red amber, Orange, Green, Aqua, Cyan, Blue, Purple, Pink & White
- Includes all mounting hardware, bracket and sender
- 5 levels day / night dimming function
- User pre-set warning functions
- Advanced stepper motor technology
SPARES/SPECS
Series | Muscle Series III |
Bezel OD | 57mm / 2 1/4" |
Body OD | 52mm / 2" |
Range | 40°-120° |
Lighting | LED Multi-select 10 Colour |
Type | Electronic |
