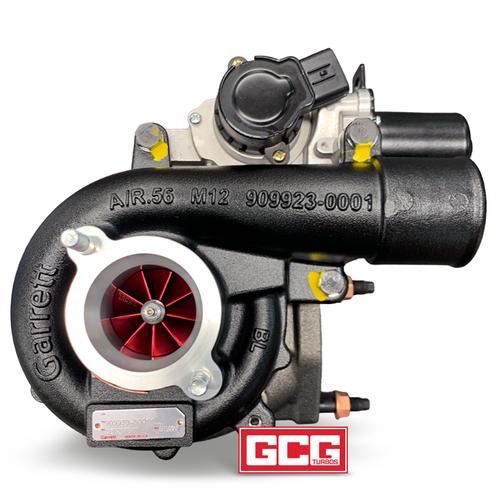

TDX Turbo Upgrade GTB2256VZK SUITS Toyota Hilux KUN16 KUN26 3.0L 1KD-FTV (2006-2015)

GCG's TDX Turbocharger range is designed as a direct, bolt-on replacement of a factory turbo. Ideal for people looking for extra grunt and towing power. All TDX Turbochargers are built in-house, using a specifically designed billet compressor wheel, providing superior airflow over a factory unit. This results in a healthy gain in overall torque and horsepower.

To gain the full potential of the TDX range of turbochargers, we recommend having the vehicle tuned to meet safe EGTs and Lambda readings, and fitting upgrade supporting components, such as higher flowing exhaust, upgrade intercooler, upgrade hot and cold side piping and upgrade air inlet piping/airbox.

Product Features:
• 43mm compressor wheel
• Highflow Garrett turbine wheel
• Proven results (Dynolink Automotive) 154kWm 542Nm at 24psi (with upgraded injectors and exhaust)

Application: Toyota Hilux D4D N70 1KD-FTV 3.0L KUN16R, KUN26R (03/2005 - 09/2015)

OEM Part Number: 17201-30110, 1720130110, 17201-0L041, 172010L041, 17201-0L042, 172010L042, 17201-0L040, 172010L040
Turbocharger Part Number: TDX909930-5001Y
Previous Versions: TC1VET-S0011B, TC1VETS0011B, TC1VED-S0015B, TC1VEDS0015B, 9B001, CT16VGT

Select the "Fitment Instructions" Tab for all Technical Documents related to this turbocharger.
Note: if the turbocharger fails, and there are any signs of overspeed/excessive boost pressure when assessed, it will not be covered under warranty.
