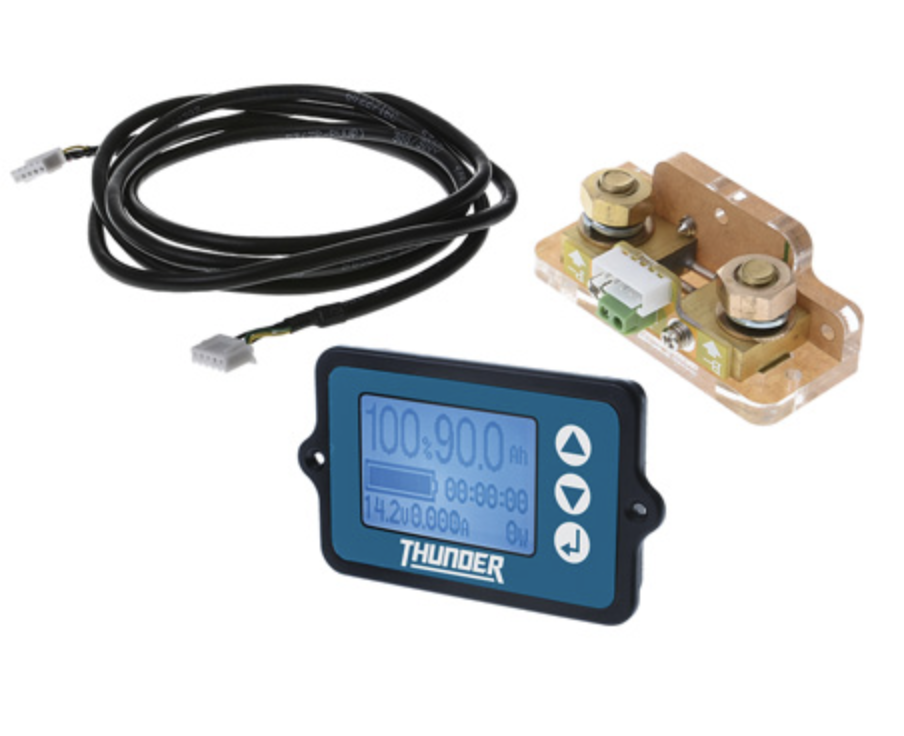

THUNDER BATTERY MONITOR DISPLAY 12V TDR17012

Specifications:

Operating Voltage: 8 – 60VDC
Working Power: 8 – 10mA
Standby Power Consumption: 0.50 – 0.8mA
Backlit Light Current: 40 – 50mA
Battery Capacity: 0.1 – 590Ah
Built-in Current: 5-10A
Shunt Opertaing Current: 150A
Outside Unit Diameter: 60 x 40 x 10mm
Display Window Size: 32 x 23mm
External Dimensions of Shunt: 23 x 18 x 5mm
